Description
TSUBAKI TTUP — Plastic Top Chain TTUP Type (Curved Conveying), genuine TSUBAKI product.
Overview
Tsubaki TTUP type plastic top chain is a side-flexing flat-top chain that lets one conveyor line run straight sections and horizontal curves without transfers. The resin top plates carry containers directly, while hinge geometry permits sideways bending around corner tracks. It is a standard choice for container and package conveyors in beverage, dairy and consumer goods plants.
Key Features
- Single chain handles both straights and curves
- Resin top plates resist corrosion
- Quiet, lubrication-free running in most applications
- Matching lock sprockets available
Specifications
| Part No. |
Material (Body) |
Type |
Type |
Pitch (mm) |
No. of Strands |
Inner Link Inner Width (mm) |
Top Plate (mm) |
Max. Allowable Tension (kN) |
| TTUP1143-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1143-LFB-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1143-LFG-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1143-LFW-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1143-WR-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1143P-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1143P-LFB-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1143P-LFG-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1143P-WR-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
114.3 |
1.08 |
| TTUP1905-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
190.5 |
1.08 |
| TTUP1905-LFB-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
190.5 |
1.08 |
| TTUP1905-LFG-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
190.5 |
1.08 |
| TTUP1905-LFW-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
190.5 |
1.08 |
| TTUP1905-WR-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
190.5 |
1.08 |
| TTUP826-KV150-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
0.98 |
| TTUP826-KV180-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
0.98 |
| TTUP826-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826-LFB-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826-LFG-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826-LFW-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826-WR-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826P-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826P-LFB-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826P-LFG-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826P-LFW-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUP826P-WR-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
How to Order
Confirm top plate width, material grade, curve radius and total chain length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

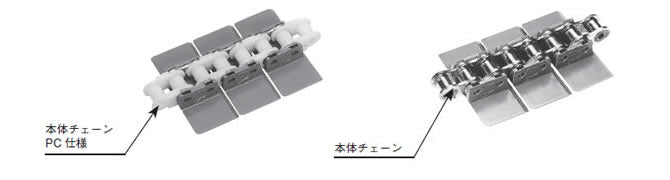

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
