Description
TSUBAKI TKS0 — TKS Type Cable Carrier, genuine TSUBAKI product.
Overview
The Tsubaki TKS type cable carrier guides and protects cables and hoses that move with a machine axis, keeping them at a fixed bending radius as the axis travels back and forth. Each model is defined by its pitch, outer height and bending radius, which together determine cable capacity and allowable travel stroke. It is used on machine tools, industrial robots, gantries and automated handling systems.
Key Features
- Maintains a fixed bending radius over the full stroke
- Several bending radii offered within each size
- Rated for maximum cable diameter and cable weight
- Protects cables from abrasion and tangling
Specifications
| Part No. |
Type |
Pitch (mm) |
Model Type |
External Height (mm) |
Mounting Dimension (Height) (mm) |
Bending Radius R (mm) |
Max. Cable/Hose O.D. (mm) |
Max. Cable/Hose Weight (kg/m) |
Max. Travel Stroke (mm) |
| TKS070R125 |
Cable carrier body |
70 |
TKS070 |
50 |
310 |
125 |
27 |
10 |
6.7 |
| TKS070R145 |
Cable carrier body |
70 |
TKS070 |
50 |
350 |
145 |
27 |
10 |
6.7 |
| TKS070R75 |
Cable carrier body |
70 |
TKS070 |
50 |
210 |
75 |
27 |
10 |
6.7 |
| TKS070R90 |
Cable carrier body |
70 |
TKS070 |
50 |
240 |
90 |
27 |
10 |
6.7 |
| TKS095R125 |
Cable carrier body |
95 |
TKS095 |
70 |
330 |
125 |
42 |
10 |
8.7 |
| TKS095R145 |
Cable carrier body |
95 |
TKS095 |
70 |
370 |
145 |
42 |
10 |
8.7 |
| TKS095R200 |
Cable carrier body |
95 |
TKS095 |
70 |
480 |
200 |
42 |
10 |
8.7 |
| TKS095R250 |
Cable carrier body |
95 |
TKS095 |
70 |
580 |
250 |
42 |
10 |
8.7 |
| TKS095R300 |
Cable carrier body |
95 |
TKS095 |
70 |
680 |
300 |
42 |
10 |
8.7 |
How to Order
Select by bending radius, maximum cable or hose diameter, cable weight per meter and travel stroke. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

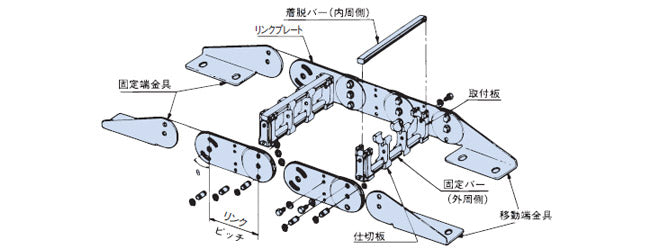

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
