Description
TSUBAKI TO — Stainless Steel Top Chain TO Type (Curved Conveying), genuine TSUBAKI product.
Overview
The Tsubaki TO type is a stainless steel top chain for curved conveying, with flat top plates and a side-flexing design. Stainless construction provides wear and corrosion resistance for heavy containers such as glass bottles. It is used in bottling, food and pharmaceutical lines with curved conveyor paths.
Key Features
- Side-flexing for curved conveyors
- Stainless steel top plates
- Durable flat carrying surface
- Suitable for wet environments
Specifications
| Part No. |
Shape |
Material (Body) |
Type |
Type |
Pitch (mm) |
Operating Temp. Range (˚C) |
Link Width (mm) |
Min. Bending Radius (mm) |
Approx. Mass (kg/m) |
Allowable Speed (m/min) |
Roller |
Chain Type |
Top Plate (mm) |
Roller Type |
| TOR1143-L |
TOR |
Steel |
Per link |
Vertical conveyor chain |
76.2 |
-10～150 |
15.8 |
112 |
6.9 |
60 (lubricating oil) |
|
Top chain |
114.3 |
|
| TOR1143-SS-L |
TOR |
Stainless steel |
Per link |
Vertical conveyor chain |
76.2 |
|
15.8 |
112 |
6.9 |
|
SS (R roller type) |
Top chain |
114.3 |
R roller |
| TOR1778-L |
TOR |
Steel |
Per link |
Vertical conveyor chain |
76.2 |
-10～150 |
15.8 |
112 |
8.1 |
60 (lubricating oil) |
|
Top chain |
177.8 |
|
| TOR1778-SS-L |
TOR |
Stainless steel |
Per link |
Vertical conveyor chain |
76.2 |
|
15.8 |
112 |
8.1 |
|
SS (R roller type) |
Top chain |
177.8 |
R roller |
| TOR826-L |
TOR |
Steel |
Per link |
Vertical conveyor chain |
76.2 |
-10～150 |
15.8 |
112 |
5.9 |
60 (lubricating oil) |
|
Top chain |
82.6 |
|
| TOR826-SS-L |
TOR |
Stainless steel |
Per link |
Vertical conveyor chain |
76.2 |
|
15.8 |
112 |
5.9 |
|
SS (R roller type) |
Top chain |
82.6 |
R roller |
| TOS1143-L |
TOS |
Steel |
Per link |
Vertical conveyor chain |
76.2 |
-10～150 |
15.8 |
112 |
4.8 |
60 (lubricating oil) |
|
Top chain |
114.3 |
|
| TOS1143-SS-L |
TOS |
Stainless steel |
Per link |
Vertical conveyor chain |
76.2 |
|
15.8 |
112 |
4.8 |
|
SS (S roller type) |
Top chain |
114.3 |
S roller |
| TOS1778-L |
TOS |
Steel |
Per link |
Vertical conveyor chain |
76.2 |
-10～150 |
15.8 |
112 |
6.3 |
60 (lubricating oil) |
|
Top chain |
177.8 |
|
| TOS1778-SS-L |
TOS |
Stainless steel |
Per link |
Vertical conveyor chain |
76.2 |
|
15.8 |
112 |
6.3 |
|
SS (S roller type) |
Top chain |
177.8 |
S roller |
| TOS826-L |
TOS |
Steel |
Per link |
Vertical conveyor chain |
76.2 |
-10～150 |
15.8 |
112 |
4.1 |
60 (lubricating oil) |
|
Top chain |
82.6 |
|
| TOS826-SS-L |
TOS |
Stainless steel |
Per link |
Vertical conveyor chain |
76.2 |
|
15.8 |
112 |
4.1 |
|
SS (S roller type) |
Top chain |
82.6 |
S roller |
How to Order
Specify top plate width, curve radius and chain length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

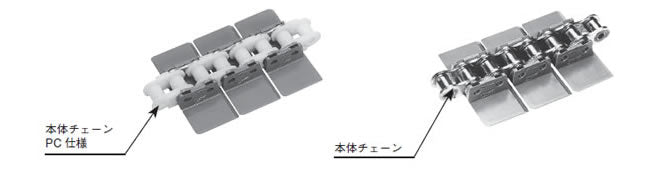

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
