TSUBAKI TTKU — Stainless Steel Top Chain TTKU Type (Curved Conveying), genuine TSUBAKI product.
Overview
The TSUBAKI TTKU Type stainless steel top chain is a side-flexing top chain for curved conveyor sections. Its stainless plates carry containers on a flat surface while the hinge design lets the chain turn corners. It is used in beverage, canning and packaging lines that require durable conveying through bends.
Key Features
- Stainless steel plates for durability
- Side-flexing design for curves
- Flat conveying surface for containers
Specifications
| Part No. |
Shape |
Chain Pitch (mm) |
Material (Body) |
Type |
Type |
Operating Temp. Range (˚C) |
Link Width (mm) |
Min. Bending Radius (mm) |
Approx. Mass (kg/m) |
Allowable Speed (m/min) |
Chain Type |
Top Plate (mm) |
| TTKU1100-L |
TTKU |
19.05 |
Steel |
Per link |
Vertical conveyor chain |
-10～150 |
12.7 |
500 |
4.5 |
45 (lubricating oil) |
Top chain |
110 |
| TTKU826-L |
TTKU |
19.05 |
Steel |
Per link |
Vertical conveyor chain |
-10～150 |
12.7 |
500 |
3.8 |
45 (lubricating oil) |
Top chain |
82.6 |
How to Order
Confirm top plate width, curve radius and chain length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

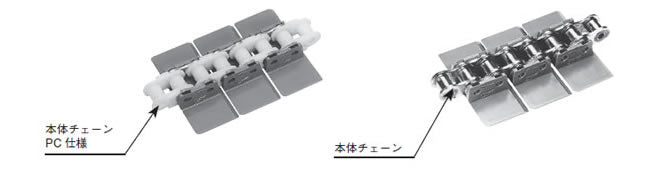

Product image is representative of the TSUBAKI series; appearance varies by size and model.
