Description
TSUBAKI TU — Stainless Steel Top Chain TU Type (Curved Conveying), genuine TSUBAKI product.
Overview
Tsubaki TU type stainless steel top chain is a side-flexing flat-top chain that allows a conveyor to curve horizontally while carrying containers. The stainless steel top plates provide a hard, corrosion-resistant carrying surface. It is applied in beverage, dairy and food lines where conveyors change direction.
Key Features
- Side-flexing hinge for horizontal curves
- Corrosion-resistant stainless steel plates
- Flat surface for stable container transport
- Runs in curve tracks with guides
Specifications
| Part No. |
Shape |
Chain Pitch (mm) |
Material (Body) |
Type |
Type |
Operating Temp. Range (˚C) |
Link Width (mm) |
Min. Bending Radius (mm) |
Approx. Mass (kg/m) |
Allowable Speed (m/min) |
Chain Type |
Max. Allowable Tension (kN) |
Top Plate (mm) |
Material (Chain) |
| TU1143-L |
TU |
76.2 |
Steel |
Per link |
Vertical conveyor chain |
-10～150 |
19 |
112 |
4.5 |
60 (lubricating oil) |
Top chain |
|
114.3 |
|
| TU1143-SS-L |
TU |
76.2 |
Stainless steel |
Per link |
Vertical conveyor chain |
|
19 |
112 |
4.5 |
|
Top chain |
0.98 |
114.3 |
SUS304 |
| TU1778-SS-L |
|
|
Stainless steel |
Per link |
Vertical conveyor chain |
|
- |
|
|
|
Top chain |
- |
|
|
| TU826-L |
TU |
76.2 |
Steel |
Per link |
Vertical conveyor chain |
-10～150 |
19 |
112 |
3.8 |
60 (lubricating oil) |
Top chain |
|
82.6 |
|
| TU826-SS-L |
TU |
76.2 |
Stainless steel |
Per link |
Vertical conveyor chain |
|
19 |
112 |
3.8 |
|
Top chain |
0.98 |
82.6 |
SUS304 |
How to Order
Specify top plate width, minimum curve radius and total chain length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

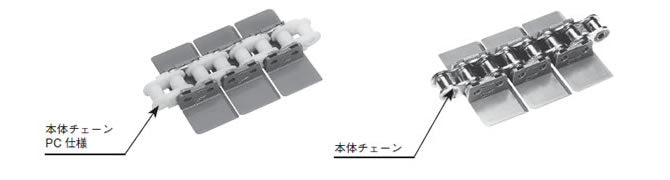

Product image is representative of the TSUBAKI series; appearance varies by size and model.
