TSUBAKI Double Pitch Chain EP, RF2

Description

TSUBAKI RF2 — Double Pitch Chain EP, genuine TSUBAKI product.

Overview

This TSUBAKI double pitch chain is fitted with extended pins (EP) at specified link intervals. The pins project beyond the link plates to provide attachment points for fixtures, guide rollers, carriers or pushers. It is used in conveyors and special machinery where custom attachments must be fixed to the chain without welding.

Key Features

  • Extended pins for custom attachments
  • Pin intervals selectable
  • Double pitch construction

Specifications

Part No. Material (Body) Type Type Pitch (mm) Link Width (mm) Links per Unit Approx. Mass (kg/m) Roller Diameter (Ømm) Chain No. Plate Thickness (mm) Avg. Tensile Strength (kN) Chain Type
RF2040R-1LEP-L Steel Per link Attachment chain 25.4 7.95 - 0.87 15.88 RF2040 1.5 16.7 Double pitch chain
RF2040R-2LEP-L Steel Per link Attachment chain 25.4 7.95 - 0.87 15.88 RF2040 1.5 16.7 Double pitch chain
RF2040R-3LEP-L Steel Per link Attachment chain 25.4 7.95 - 0.87 15.88 RF2040 1.5 16.7 Double pitch chain
RF2040R-4LEP-L Steel Per link Attachment chain 25.4 7.95 - 0.87 15.88 RF2040 1.5 16.7 Double pitch chain
RF2040S-1LEP-L Steel Per link Attachment chain 25.4 7.95 - 0.51 7.92 RF2040 1.5 16.7 Double pitch chain
RF2040S-2LEP-L Steel Per link Attachment chain 25.4 7.95 - 0.51 7.92 RF2040 1.5 16.7 Double pitch chain
RF2040S-3LEP-L Steel Per link Attachment chain 25.4 7.95 - 0.51 7.92 RF2040 1.5 16.7 Double pitch chain
RF2040S-4LEP-L Steel Per link Attachment chain 25.4 7.95 - 0.51 7.92 RF2040 1.5 16.7 Double pitch chain
RF2050R-1LEP-L Steel Per link Attachment chain 31.75 9.53 - 1.3 19.05 RF2050 2 27.5 Double pitch chain
RF2050R-2LEP-L Steel Per link Attachment chain 31.75 9.53 - 1.3 19.05 RF2050 2 27.5 Double pitch chain
RF2050R-3LEP-L Steel Per link Attachment chain 31.75 9.53 - 1.3 19.05 RF2050 2 27.5 Double pitch chain
RF2050R-4LEP-L Steel Per link Attachment chain 31.75 9.53 - 1.3 19.05 RF2050 2 27.5 Double pitch chain
RF2050S-1LEP-L Steel Per link Attachment chain 31.75 9.53 - 0.84 10.16 RF2050 2 27.5 Double pitch chain
RF2050S-2LEP-L Steel Per link Attachment chain 31.75 9.53 - 0.84 10.16 RF2050 2 27.5 Double pitch chain
RF2050S-3LEP-L Steel Per link Attachment chain 31.75 9.53 - 0.84 10.16 RF2050 2 27.5 Double pitch chain
RF2050S-4LEP-L Steel Per link Attachment chain 31.75 9.53 - 0.84 10.16 RF2050 2 27.5 Double pitch chain
RF2060R-1LEP-L Steel Per link Attachment chain 38.1 12.7 - 2.19 22.23 RF2060 3.2 40.2 Double pitch chain
RF2060R-2LEP-L Steel Per link Attachment chain 38.1 12.7 - 2.19 22.23 RF2060 3.2 40.2 Double pitch chain
RF2060R-3LEP-L Steel Per link Attachment chain 38.1 12.7 - 2.19 22.23 RF2060 3.2 40.2 Double pitch chain
RF2060R-4LEP-L Steel Per link Attachment chain 38.1 12.7 - 2.19 22.23 RF2060 3.2 40.2 Double pitch chain
RF2060S-1LEP-L Steel Per link Attachment chain 38.1 12.7 - 1.51 11.91 RF2060 3.2 40.2 Double pitch chain
RF2060S-2LEP-L Steel Per link Attachment chain 38.1 12.7 - 1.51 11.91 RF2060 3.2 40.2 Double pitch chain
RF2060S-3LEP-L Steel Per link Attachment chain 38.1 12.7 - 1.51 11.91 RF2060 3.2 40.2 Double pitch chain
RF2060S-4LEP-L Steel Per link Attachment chain 38.1 12.7 - 1.51 11.91 RF2060 3.2 40.2 Double pitch chain
RF2080R-1LEP-L Steel Per link Attachment chain 50.8 15.88 - 3.52 28.58 RF2080 4 68.6 Double pitch chain
RF2080R-2LEP-L Steel Per link Attachment chain 50.8 15.88 - 3.52 28.58 RF2080 4 68.6 Double pitch chain
RF2080R-3LEP-L Steel Per link Attachment chain 50.8 15.88 - 3.52 28.58 RF2080 4 68.6 Double pitch chain
RF2080R-4LEP-L Steel Per link Attachment chain 50.8 15.88 - 3.52 28.58 RF2080 4 68.6 Double pitch chain
RF2080S-1LEP-L Steel Per link Attachment chain 50.8 15.88 - 2.41 15.88 RF2080 4 68.6 Double pitch chain
RF2080S-2LEP-L Steel Per link Attachment chain 50.8 15.88 - 2.41 15.88 RF2080 4 68.6 Double pitch chain
RF2080S-3LEP-L Steel Per link Attachment chain 50.8 15.88 - 2.41 15.88 RF2080 4 68.6 Double pitch chain
RF2080S-4LEP-L Steel Per link Attachment chain 50.8 15.88 - 2.41 15.88 RF2080 4 68.6 Double pitch chain
RF2100R-1LEP-L Steel Per link Attachment chain 63.5 19.05 - 5.8 39.69 RF2100 4.8 108 Double pitch chain
RF2100R-2LEP-L Steel Per link Attachment chain 63.5 19.05 - 5.8 39.69 RF2100 4.8 108 Double pitch chain
RF2100R-3LEP-L Steel Per link Attachment chain 63.5 19.05 - 5.8 39.69 RF2100 4.8 108 Double pitch chain
RF2100R-4LEP-L Steel Per link Attachment chain 63.5 19.05 - 5.8 39.69 RF2100 4.8 108 Double pitch chain
RF2100S-1LEP-L Steel Per link Attachment chain 63.5 19.05 - 3.54 19.05 RF2100 4.8 108 Double pitch chain
RF2100S-2LEP-L Steel Per link Attachment chain 63.5 19.05 - 3.54 19.05 RF2100 4.8 108 Double pitch chain
RF2100S-3LEP-L Steel Per link Attachment chain 63.5 19.05 - 3.54 19.05 RF2100 4.8 108 Double pitch chain
RF2100S-4LEP-L Steel Per link Attachment chain 63.5 19.05 - 3.54 19.05 RF2100 4.8 108 Double pitch chain

How to Order

Specify chain number, extended pin interval and chain length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

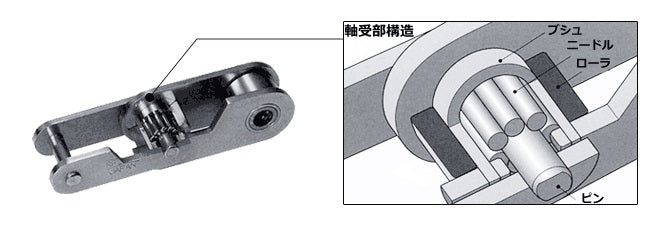

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
