Name: TSUBAKI Lambda Double Pitch Chain, RF2 (Part 3)
Brand: TSUBAKI
SKU: RF2080R-LMC-8LA2-L
Price: 5.19 USD

TSUBAKI Lambda Double Pitch Chain, RF2 (Part 3)

VendorTSUBAKI

Description

TSUBAKI RF2 — Lambda Double Pitch Chain, genuine TSUBAKI product.

Overview

Tsubaki Lambda double pitch chain is a lube-free version of the long-pitch conveyor chain, using oil-impregnated sintered bushings. It runs for long periods without additional lubrication, reducing maintenance and contamination risk. It is used in food, printing and assembly conveyors, with plain links or attachments.

Key Features

Lube-free bushings for low maintenance
Long pitch for lightweight conveyors
Available with attachments
S or R roller types

Specifications

Part No.	Material (Body)	Type	Type	Pitch (mm)	Link Width (mm)	Links per Unit	Approx. Mass (kg/m)	Chain No.	Roller Diameter (Ømm)	Plate Thickness (mm)	Avg. Tensile Strength (kN)	Chain Type	Pin Length L1 (mm)	Pin Length L2 (mm)	Pin Length (L) (mm)
RF2080R-LMC-8LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	3.52	RF2080	28.58	4	63.7	Lambda double pitch chain
RF2080R-LMC-8LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	3.52	RF2080	28.58	4	63.7	Lambda double pitch chain
RF2080R-LMC-9LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	3.52	RF2080	28.58	4	63.7	Lambda double pitch chain
RF2080R-LMC-9LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	3.52	RF2080	28.58	4	63.7	Lambda double pitch chain
RF2080R-LMC-L	Steel	Per link	Attachment chain	50.8	15.88	-	3.52	RF2080	28.58	4	63.7	Lambda double pitch chain
RF2080R-LMC-OL	Steel	Offset link	Attachment chain	50.8	15.88	-	3.52	RF2080	28.58	4	63.7				39.2
RF2080S-LMC-10LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-10LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-1LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-1LEP-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-1LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-2LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-2LEP-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-2LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-3LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-3LEP-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-3LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-4LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-4LEP-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-4LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-5LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-5LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-6LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-6LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-7LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-7LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-8LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-8LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-9LA2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-9LK2-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-L	Steel	Per link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7	Lambda double pitch chain
RF2080S-LMC-OL	Steel	Offset link	Attachment chain	50.8	15.88	-	2.41	RF2080	15.88	4	63.7				39.2
RF2100-LMC-1LEP-JL	Steel	Connecting link	Attachment chain	63.5	19.05	-		RF2100		4.8	100	Lambda double pitch chain	21.8	24.5
RF2100-LMC-2LEP-JL	Steel	Connecting link	Attachment chain	63.5	19.05	-		RF2100		4.8	100	Lambda double pitch chain	21.8	24.5
RF2100-LMC-A2-JL	Steel	Connecting link	Attachment chain	63.5	19.05	-		RF2100		4.8	100	Lambda double pitch chain	21.8	24.5
RF2100-LMC-JL	Steel	Connecting link	Attachment chain	63.5	19.05	-		RF2100		4.8	100	Lambda double pitch chain	21.8	24.5
RF2100-LMC-K2-JL	Steel	Connecting link	Attachment chain	63.5	19.05	-		RF2100		4.8	100	Lambda double pitch chain	21.8	24.5
RF2100R-LMC-10LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-10LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-1LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-1LEP-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-1LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-2LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-2LEP-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-2LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-3LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-3LEP-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-3LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-4LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-4LEP-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-4LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-5LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-5LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-6LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-6LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-7LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-7LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-8LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-8LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-9LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-9LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-L	Steel	Per link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100	Lambda double pitch chain
RF2100R-LMC-OL	Steel	Offset link	Attachment chain	63.5	19.05	-	5.8	RF2100	39.69	4.8	100				47.5
RF2100S-LMC-10LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-10LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-1LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-1LEP-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-1LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-2LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-2LEP-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-2LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-3LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-3LEP-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-3LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-4LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-4LEP-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-4LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-5LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-5LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-6LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-6LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-7LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-7LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-8LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-8LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-9LA2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-9LK2-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-L	Steel	Per link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100	Lambda double pitch chain
RF2100S-LMC-OL	Steel	Offset link	Attachment chain	63.5	19.05	-	3.54	RF2100	19.05	4.8	100				47.5

How to Order

Specify chain size, roller type, attachments and total length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

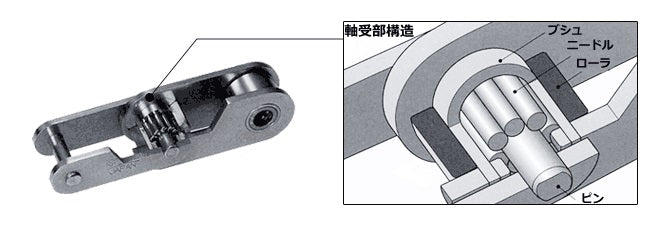

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

Genuine TSUBAKI product sourced through Korean distribution
Ships worldwide from South Korea by FedEx International Priority Express
Lead time varies by model; please inquire for exact delivery
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
