Name: TSUBAKI Heavy Duty Large Conveyor Chain (AT Spec) (Part 1)
Brand: TSUBAKI
SKU: RF03075-AT-A1-PL
Price: 15.92 USD

TSUBAKI Heavy Duty Large Conveyor Chain (AT Spec) (Part 1)

VendorTSUBAKI

Description

TSUBAKI RF — Heavy Duty Large Conveyor Chain (AT Spec), genuine TSUBAKI product.

Overview

The TSUBAKI AT spec heavy duty large conveyor chain is a large-pitch conveyor chain designed for abrasive and heavy-load applications. Hardened components resist wear from abrasive materials such as cement, coal and minerals. It is used in bulk material conveyors, bucket elevators and heavy industry.

Key Features

Large pitch for bulk material conveying
Hardened components for abrasion resistance
Suited to heavy, abrasive loads

Specifications

Part No.	Material (Body)	Type	Pitch	Type	Pitch (mm)	Link Width (mm)	Chain No.	Plate Thickness (mm)	Min. Tensile Strength (kN)	Avg. Tensile Strength (kN)	Chain Type	Pin Length L1 (mm)
RF03075-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	16.1	RF03075	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03075-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	16.1	RF03075	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03075-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	16.1	RF03075	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03075-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	16.1	RF03075	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03075-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	16.1	RF03075	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03100-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	16.1	RF03100	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03100-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	16.1	RF03100	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03100-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	16.1	RF03100	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03100-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	16.1	RF03100	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF03100-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	16.1	RF03100	3.2	59.2	69.6	Heavy-duty large conveyor chain	20
RF05075-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	22	RF05075	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05075-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	22	RF05075	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05075-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	22	RF05075	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05075-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	22	RF05075	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05075-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	75	22	RF05075	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05100-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	22	RF05100	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05100-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	22	RF05100	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05100-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	22	RF05100	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05100-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	22	RF05100	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05100-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	22	RF05100	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05125-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	22	RF05125	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05125-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	22	RF05125	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05125-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	22	RF05125	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05125-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	22	RF05125	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05125-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	22	RF05125	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05150-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	22	RF05150	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05150-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	22	RF05150	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05150-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	22	RF05150	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05150-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	22	RF05150	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF05150-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	22	RF05150	4.5	121	142	Heavy-duty large conveyor chain	28.5
RF08125-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	27	RF08125	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08125-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	27	RF08125	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08125-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	27	RF08125	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08125-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	27	RF08125	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08125-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	27	RF08125	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08150-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	27	RF08150	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08150-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	27	RF08150	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08150-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	27	RF08150	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08150-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	27	RF08150	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF08150-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	27	RF08150	6.3	121	142	Heavy-duty large conveyor chain	34.5
RF10100-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	30	RF10100	6.3	192	226	Heavy-duty large conveyor chain	36
RF10100-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	30	RF10100	6.3	192	226	Heavy-duty large conveyor chain	36
RF10100-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	30	RF10100	6.3	192	226	Heavy-duty large conveyor chain	36
RF10100-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	30	RF10100	6.3	192	226	Heavy-duty large conveyor chain	36
RF10100-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	100	30	RF10100	6.3	192	226	Heavy-duty large conveyor chain	36
RF10125-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	30	RF10125	6.3	192	226	Heavy-duty large conveyor chain	36
RF10125-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	30	RF10125	6.3	192	226	Heavy-duty large conveyor chain	36
RF10125-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	30	RF10125	6.3	192	226	Heavy-duty large conveyor chain	36
RF10125-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	30	RF10125	6.3	192	226	Heavy-duty large conveyor chain	36
RF10125-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	125	30	RF10125	6.3	192	226	Heavy-duty large conveyor chain	36
RF10150-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	30	RF10150	6.3	192	226	Heavy-duty large conveyor chain	36
RF10150-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	30	RF10150	6.3	192	226	Heavy-duty large conveyor chain	36
RF10150-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	30	RF10150	6.3	192	226	Heavy-duty large conveyor chain	36
RF10150-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	30	RF10150	6.3	192	226	Heavy-duty large conveyor chain	36
RF10150-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	150	30	RF10150	6.3	192	226	Heavy-duty large conveyor chain	36
RF12200-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	37.1	RF12200	7.9	237	279	Heavy-duty large conveyor chain	43
RF12200-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	37.1	RF12200	7.9	237	279	Heavy-duty large conveyor chain	43
RF12200-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	37.1	RF12200	7.9	237	279	Heavy-duty large conveyor chain	43
RF12200-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	37.1	RF12200	7.9	237	279	Heavy-duty large conveyor chain	43
RF12200-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	37.1	RF12200	7.9	237	279	Heavy-duty large conveyor chain	43
RF12250-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	37.1	RF12250	7.9	237	279	Heavy-duty large conveyor chain	43
RF12250-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	37.1	RF12250	7.9	237	279	Heavy-duty large conveyor chain	43
RF12250-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	37.1	RF12250	7.9	237	279	Heavy-duty large conveyor chain	43
RF12250-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	37.1	RF12250	7.9	237	279	Heavy-duty large conveyor chain	43
RF12250-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	37.1	RF12250	7.9	237	279	Heavy-duty large conveyor chain	43
RF17200-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	51.4	RF17200	9.5	329	387	Heavy-duty large conveyor chain	58
RF17200-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	51.4	RF17200	9.5	329	387	Heavy-duty large conveyor chain	58
RF17200-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	51.4	RF17200	9.5	329	387	Heavy-duty large conveyor chain	58
RF17200-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	51.4	RF17200	9.5	329	387	Heavy-duty large conveyor chain	58
RF17200-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	200	51.4	RF17200	9.5	329	387	Heavy-duty large conveyor chain	58
RF17250-AT-A1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	51.4	RF17250	9.5	329	387	Heavy-duty large conveyor chain	58
RF17250-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	51.4	RF17250	9.5	329	387	Heavy-duty large conveyor chain	58
RF17250-AT-K1-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	51.4	RF17250	9.5	329	387	Heavy-duty large conveyor chain	58
RF17250-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	51.4	RF17250	9.5	329	387	Heavy-duty large conveyor chain	58
RF17250-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	250	51.4	RF17250	9.5	329	387	Heavy-duty large conveyor chain	58
RF17300-AT-A2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	300	51.4	RF17300	9.5	329	387	Heavy-duty large conveyor chain	58
RF17300-AT-K2-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	300	51.4	RF17300	9.5	329	387	Heavy-duty large conveyor chain	58
RF17300-AT-PL	Steel	Outer link	Metric pitch	Vertical conveyor chain	300	51.4	RF17300	9.5	329	387	Heavy-duty large conveyor chain	58
RF204-AT-A1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	66.27	27	RF204	6.3	121	142	Heavy-duty large conveyor chain	31
RF204-AT-A2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	66.27	27	RF204	6.3	121	142	Heavy-duty large conveyor chain	31
RF204-AT-K1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	66.27	27	RF204	6.3	121	142	Heavy-duty large conveyor chain	31
RF204-AT-K2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	66.27	27	RF204	6.3	121	142	Heavy-duty large conveyor chain	31
RF204-AT-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	66.27	27	RF204	6.3	121	142	Heavy-duty large conveyor chain	31
RF205-AT-A1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	78.11	37.1	RF205	7.9	204	240	Heavy-duty large conveyor chain	40.5
RF205-AT-A2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	78.11	37.1	RF205	7.9	204	240	Heavy-duty large conveyor chain	40.5
RF205-AT-K1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	78.11	37.1	RF205	7.9	204	240	Heavy-duty large conveyor chain	40.5
RF205-AT-K2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	78.11	37.1	RF205	7.9	204	240	Heavy-duty large conveyor chain	40.5
RF205-AT-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	78.11	37.1	RF205	7.9	204	240	Heavy-duty large conveyor chain	40.5
RF212-AT-A1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	152.4	37.1	RF212	9.5	329	387	Heavy-duty large conveyor chain	44.5
RF212-AT-A2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	152.4	37.1	RF212	9.5	329	387	Heavy-duty large conveyor chain	44.5
RF212-AT-K1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	152.4	37.1	RF212	9.5	329	387	Heavy-duty large conveyor chain	44.5
RF212-AT-K2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	152.4	37.1	RF212	9.5	329	387	Heavy-duty large conveyor chain	44.5
RF212-AT-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	152.4	37.1	RF212	9.5	329	387	Heavy-duty large conveyor chain	44.5
RF214-AT-A1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	101.6	31.6	RF214	7.9	204	240	Heavy-duty large conveyor chain	37.5
RF214-AT-A2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	101.6	31.6	RF214	7.9	204	240	Heavy-duty large conveyor chain	37.5
RF214-AT-K1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	101.6	31.6	RF214	7.9	204	240	Heavy-duty large conveyor chain	37.5
RF214-AT-K2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	101.6	31.6	RF214	7.9	204	240	Heavy-duty large conveyor chain	37.5
RF214-AT-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	101.6	31.6	RF214	7.9	204	240	Heavy-duty large conveyor chain	37.5
RF430-AT-A1-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	101.6	22.6	RF430	4.8	83.4	98.1	Heavy-duty large conveyor chain	25.5
RF430-AT-A2-PL	Steel	Outer link	Inch pitch	Vertical conveyor chain	101.6	22.6	RF430	4.8	83.4	98.1	Heavy-duty large conveyor chain	25.5

How to Order

Specify chain number, roller type, attachment and length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

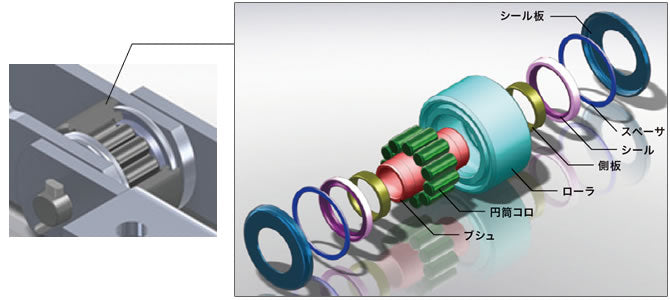

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

Genuine TSUBAKI product sourced through Korean distribution
Ships worldwide from South Korea by FedEx International Priority Express
Lead time varies by model; please inquire for exact delivery
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
