Description
TSUBAKI RF — Heavy Duty Large Conveyor Chain (AT Spec), genuine TSUBAKI product.
Overview
The TSUBAKI AT spec heavy duty large conveyor chain is a large-pitch conveyor chain designed for abrasive and heavy-load applications. Hardened components resist wear from abrasive materials such as cement, coal and minerals. It is used in bulk material conveyors, bucket elevators and heavy industry.
Key Features
- Large pitch for bulk material conveying
- Hardened components for abrasion resistance
- Suited to heavy, abrasive loads
Specifications
| Part No. |
Type |
Approx. Mass (kg/m) |
Chain No. |
Plate Thickness (mm) |
Pitch P (mm) |
Min. Tensile Strength (kN) |
Avg. Tensile Strength (kN) |
Pin Length L1 (mm) |
Pin Length L2 (mm) |
Link Width W (mm) |
Pin Diameter D (mm) |
Plate Width H (mm) |
| RF650R-AT-3LK1-L |
Link |
7.9 |
RF650R |
6.3 |
152.4 |
121 |
142 |
32.5 |
36.5 |
30.2 |
11.3 |
38.1 |
| RF650R-AT-3LK2-L |
Link |
7.9 |
RF650R |
6.3 |
152.4 |
121 |
142 |
32.5 |
36.5 |
30.2 |
11.3 |
38.1 |
| RF650R-AT-4LA1-L |
Link |
7.9 |
RF650R |
6.3 |
152.4 |
121 |
142 |
32.5 |
36.5 |
30.2 |
11.3 |
38.1 |
| RF650R-AT-4LA2-L |
Link |
7.9 |
RF650R |
6.3 |
152.4 |
121 |
142 |
32.5 |
36.5 |
30.2 |
11.3 |
38.1 |
| RF650R-AT-4LGA2-L |
Link |
7.9 |
RF650R |
6.3 |
152.4 |
121 |
142 |
32.5 |
36.5 |
30.2 |
11.3 |
38.1 |
| RF650R-AT-4LK1-L |
Link |
7.9 |
RF650R |
6.3 |
152.4 |
121 |
142 |
32.5 |
36.5 |
30.2 |
11.3 |
38.1 |
| RF650R-AT-4LK2-L |
Link |
7.9 |
RF650R |
6.3 |
152.4 |
121 |
142 |
32.5 |
36.5 |
30.2 |
11.3 |
38.1 |
| RF650R-AT-L |
Link |
7.9 |
RF650R |
6.3 |
152.4 |
121 |
142 |
32.5 |
36.5 |
30.2 |
11.3 |
38.1 |
How to Order
Specify chain number, roller type, attachment and length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

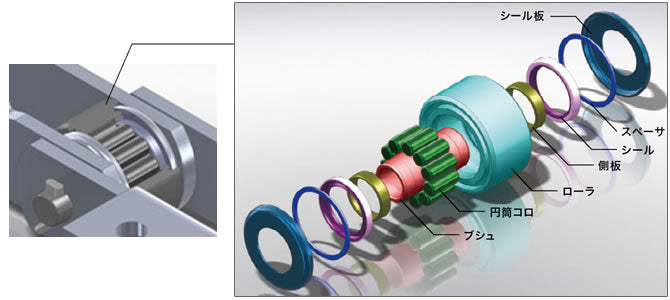

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
