Name: TSUBAKI PX Lock Pulley S Type P14M (Part 5)
Brand: TSUBAKI
SKU: PT56P14M40B-SS7565
Price: 553.84 USD

TSUBAKI PX Lock Pulley S Type P14M (Part 5)

VendorTSUBAKI

Description

TSUBAKI PT — PX Lock Pulley S Type P14M, genuine TSUBAKI product.

Overview

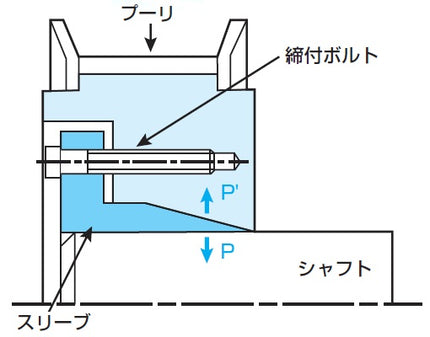

The Tsubaki PX Lock Pulley S type for P14M belts is a timing pulley with a built-in keyless locking element, allowing it to be clamped to the shaft without a keyway. The 14mm pitch suits high-torque synchronous drives. It is used in heavy conveyors, machine tools and industrial drives.

Key Features

Built-in keyless locking element
14mm pitch for high-torque drives
Easy positioning and phase adjustment
Flanged for belt tracking

Specifications

Part No.	Material	No. of Teeth	Mounting Method	L1(mm)	Outside Diameter (mm)	Tooth Profile	Pulley	Fastening Bolts (Qty)	Fastening Bolts (Size)	Width W (mm)	Nominal Width	Sleeve Frame No.
PT56P14M40B-SS7565	Carbon steel for machine structural use	56	BS (standard mounting)	24.5	246.76	P14M	B	5	M8×30	78	40mm	S7
PT56P14M40B-SS7570	Carbon steel for machine structural use	56	BS (standard mounting)	24.5	246.76	P14M	B	5	M8×30	78	40mm	S7
PT56P14M60B-FS61248	Carbon steel for machine structural use	56	BF (flat mounting)	21	246.76	P14M	B	12	M6×25	99	60mm	S6
PT56P14M60B-FS61250	Carbon steel for machine structural use	56	BF (flat mounting)	21	246.76	P14M	B	12	M6×25	99	60mm	S6
PT56P14M60B-FS61255	Carbon steel for machine structural use	56	BF (flat mounting)	21	246.76	P14M	B	12	M6×25	99	60mm	S6
PT56P14M60B-FS71060	Carbon steel for machine structural use	56	BF (flat mounting)	24.5	246.76	P14M	B	10	M8×30	99	60mm	S7
PT56P14M60B-FS71065	Carbon steel for machine structural use	56	BF (flat mounting)	24.5	246.76	P14M	B	10	M8×30	99	60mm	S7
PT56P14M60B-FS71070	Carbon steel for machine structural use	56	BF (flat mounting)	24.5	246.76	P14M	B	10	M8×30	99	60mm	S7
PT56P14M60B-SS61248	Carbon steel for machine structural use	56	BS (standard mounting)	21	246.76	P14M	B	12	M6×25	99	60mm	S6
PT56P14M60B-SS61250	Carbon steel for machine structural use	56	BS (standard mounting)	21	246.76	P14M	B	12	M6×25	99	60mm	S6
PT56P14M60B-SS61255	Carbon steel for machine structural use	56	BS (standard mounting)	21	246.76	P14M	B	12	M6×25	99	60mm	S6
PT56P14M60B-SS71060	Carbon steel for machine structural use	56	BS (standard mounting)	24.5	246.76	P14M	B	10	M8×30	99	60mm	S7
PT56P14M60B-SS71065	Carbon steel for machine structural use	56	BS (standard mounting)	24.5	246.76	P14M	B	10	M8×30	99	60mm	S7
PT56P14M60B-SS71070	Carbon steel for machine structural use	56	BS (standard mounting)	24.5	246.76	P14M	B	10	M8×30	99	60mm	S7
PT60P14M40B-FS61248	Carbon steel for machine structural use	60	BF (flat mounting)	21	264.59	P14M	B	12	M6×25	78	40mm	S6
PT60P14M40B-FS61250	Carbon steel for machine structural use	60	BF (flat mounting)	21	264.59	P14M	B	12	M6×25	78	40mm	S6
PT60P14M40B-FS61255	Carbon steel for machine structural use	60	BF (flat mounting)	21	264.59	P14M	B	12	M6×25	78	40mm	S6
PT60P14M40B-FS7560	Carbon steel for machine structural use	60	BF (flat mounting)	24.5	264.59	P14M	B	5	M8×30	78	40mm	S7
PT60P14M40B-FS7565	Carbon steel for machine structural use	60	BF (flat mounting)	24.5	264.59	P14M	B	5	M8×30	78	40mm	S7
PT60P14M40B-FS7570	Carbon steel for machine structural use	60	BF (flat mounting)	24.5	264.59	P14M	B	5	M8×30	78	40mm	S7
PT60P14M40B-SS61248	Carbon steel for machine structural use	60	BS (standard mounting)	21	264.59	P14M	B	12	M6×25	78	40mm	S6
PT60P14M40B-SS61250	Carbon steel for machine structural use	60	BS (standard mounting)	21	264.59	P14M	B	12	M6×25	78	40mm	S6
PT60P14M40B-SS61255	Carbon steel for machine structural use	60	BS (standard mounting)	21	264.59	P14M	B	12	M6×25	78	40mm	S6
PT60P14M40B-SS7560	Carbon steel for machine structural use	60	BS (standard mounting)	24.5	264.59	P14M	B	5	M8×30	78	40mm	S7
PT60P14M40B-SS7565	Carbon steel for machine structural use	60	BS (standard mounting)	24.5	264.59	P14M	B	5	M8×30	78	40mm	S7
PT60P14M40B-SS7570	Carbon steel for machine structural use	60	BS (standard mounting)	24.5	264.59	P14M	B	5	M8×30	78	40mm	S7
PT60P14M60B-FS61250	Carbon steel for machine structural use	60	BF (flat mounting)	21	264.59	P14M	B	12	M6×25	99	60mm	S6
PT60P14M60B-FS61255	Carbon steel for machine structural use	60	BF (flat mounting)	21	264.59	P14M	B	12	M6×25	99	60mm	S6
PT60P14M60B-FS71060	Carbon steel for machine structural use	60	BF (flat mounting)	24.5	264.59	P14M	B	10	M8×30	99	60mm	S7
PT60P14M60B-FS71065	Carbon steel for machine structural use	60	BF (flat mounting)	24.5	264.59	P14M	B	10	M8×30	99	60mm	S7
PT60P14M60B-FS71070	Carbon steel for machine structural use	60	BF (flat mounting)	24.5	264.59	P14M	B	10	M8×30	99	60mm	S7
PT60P14M60B-SS61250	Carbon steel for machine structural use	60	BS (standard mounting)	21	264.59	P14M	B	12	M6×25	99	60mm	S6
PT60P14M60B-SS61255	Carbon steel for machine structural use	60	BS (standard mounting)	21	264.59	P14M	B	12	M6×25	99	60mm	S6
PT60P14M60B-SS71060	Carbon steel for machine structural use	60	BS (standard mounting)	24.5	264.59	P14M	B	10	M8×30	99	60mm	S7
PT60P14M60B-SS71065	Carbon steel for machine structural use	60	BS (standard mounting)	24.5	264.59	P14M	B	10	M8×30	99	60mm	S7
PT60P14M60B-SS71070	Carbon steel for machine structural use	60	BS (standard mounting)	24.5	264.59	P14M	B	10	M8×30	99	60mm	S7
PT64P14M40B-FS61248	Carbon steel for machine structural use	64	BF (flat mounting)	21	282.41	P14M	B	12	M6×25	78	40mm	S6
PT64P14M40B-FS61250	Carbon steel for machine structural use	64	BF (flat mounting)	21	282.41	P14M	B	12	M6×25	78	40mm	S6
PT64P14M40B-FS61255	Carbon steel for machine structural use	64	BF (flat mounting)	21	282.41	P14M	B	12	M6×25	78	40mm	S6
PT64P14M40B-FS71060	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	10	M8×30	78	40mm	S7
PT64P14M40B-FS71065	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	10	M8×30	78	40mm	S7
PT64P14M40B-FS71070	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	10	M8×30	78	40mm	S7
PT64P14M40B-FS7560	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	5	M8×30	78	40mm	S7
PT64P14M40B-FS7565	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	5	M8×30	78	40mm	S7
PT64P14M40B-FS7570	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	5	M8×30	78	40mm	S7
PT64P14M40B-SS61248	Carbon steel for machine structural use	64	BS (standard mounting)	21	282.41	P14M	B	12	M6×25	78	40mm	S6
PT64P14M40B-SS61250	Carbon steel for machine structural use	64	BS (standard mounting)	21	282.41	P14M	B	12	M6×25	78	40mm	S6
PT64P14M40B-SS61255	Carbon steel for machine structural use	64	BS (standard mounting)	21	282.41	P14M	B	12	M6×25	78	40mm	S6
PT64P14M40B-SS71060	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	10	M8×30	78	40mm	S7
PT64P14M40B-SS71065	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	10	M8×30	78	40mm	S7
PT64P14M40B-SS71070	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	10	M8×30	78	40mm	S7
PT64P14M40B-SS7560	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	5	M8×30	78	40mm	S7
PT64P14M40B-SS7565	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	5	M8×30	78	40mm	S7
PT64P14M40B-SS7570	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	5	M8×30	78	40mm	S7
PT64P14M60B-FS61255	Carbon steel for machine structural use	64	BF (flat mounting)	21	282.41	P14M	B	12	M6×25	99	60mm	S6
PT64P14M60B-FS71060	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	10	M8×30	99	60mm	S7
PT64P14M60B-FS71065	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	10	M8×30	99	60mm	S7
PT64P14M60B-FS71070	Carbon steel for machine structural use	64	BF (flat mounting)	24.5	282.41	P14M	B	10	M8×30	99	60mm	S7
PT64P14M60B-SS61255	Carbon steel for machine structural use	64	BS (standard mounting)	21	282.41	P14M	B	12	M6×25	99	60mm	S6
PT64P14M60B-SS71060	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	10	M8×30	99	60mm	S7
PT64P14M60B-SS71065	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	10	M8×30	99	60mm	S7
PT64P14M60B-SS71070	Carbon steel for machine structural use	64	BS (standard mounting)	24.5	282.41	P14M	B	10	M8×30	99	60mm	S7
PT72P14M40B-FS61248	Carbon steel for machine structural use	72	BF (flat mounting)	21	318.06	P14M	B	12	M6×25	78	40mm	S6
PT72P14M40B-FS61250	Carbon steel for machine structural use	72	BF (flat mounting)	21	318.06	P14M	B	12	M6×25	78	40mm	S6
PT72P14M40B-FS61255	Carbon steel for machine structural use	72	BF (flat mounting)	21	318.06	P14M	B	12	M6×25	78	40mm	S6
PT72P14M40B-FS71060	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	10	M8×30	78	40mm	S7
PT72P14M40B-FS71065	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	10	M8×30	78	40mm	S7
PT72P14M40B-FS71070	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	10	M8×30	78	40mm	S7
PT72P14M40B-FS7560	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	5	M8×30	78	40mm	S7
PT72P14M40B-FS7565	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	5	M8×30	78	40mm	S7
PT72P14M40B-FS7570	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	5	M8×30	78	40mm	S7
PT72P14M40B-SS61248	Carbon steel for machine structural use	72	BS (standard mounting)	21	318.06	P14M	B	12	M6×25	78	40mm	S6
PT72P14M40B-SS61250	Carbon steel for machine structural use	72	BS (standard mounting)	21	318.06	P14M	B	12	M6×25	78	40mm	S6
PT72P14M40B-SS61255	Carbon steel for machine structural use	72	BS (standard mounting)	21	318.06	P14M	B	12	M6×25	78	40mm	S6
PT72P14M40B-SS71060	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	10	M8×30	78	40mm	S7
PT72P14M40B-SS71065	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	10	M8×30	78	40mm	S7
PT72P14M40B-SS71070	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	10	M8×30	78	40mm	S7
PT72P14M40B-SS7560	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	5	M8×30	78	40mm	S7
PT72P14M40B-SS7565	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	5	M8×30	78	40mm	S7
PT72P14M40B-SS7570	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	5	M8×30	78	40mm	S7
PT72P14M60B-FS71060	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	10	M8×30	99	60mm	S7
PT72P14M60B-FS71065	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	10	M8×30	99	60mm	S7
PT72P14M60B-FS71070	Carbon steel for machine structural use	72	BF (flat mounting)	24.5	318.06	P14M	B	10	M8×30	99	60mm	S7
PT72P14M60B-SS71060	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	10	M8×30	99	60mm	S7
PT72P14M60B-SS71065	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	10	M8×30	99	60mm	S7
PT72P14M60B-SS71070	Carbon steel for machine structural use	72	BS (standard mounting)	24.5	318.06	P14M	B	10	M8×30	99	60mm	S7

How to Order

Specify number of teeth, belt width and locking element bore. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

Genuine TSUBAKI product sourced through Korean distribution
Ships worldwide from South Korea by FedEx International Priority Express
Lead time varies by model; please inquire for exact delivery
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
