Description
TSUBAKI TL — Torque Limiter, genuine TSUBAKI product.
Overview

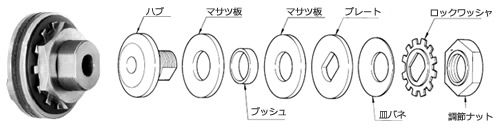

The TSUBAKI torque limiter protects drives from overload by slipping when torque exceeds a set value. A sprocket, pulley or gear is clamped between friction facings by an adjustable spring, so the slip torque can be tuned. When a jam occurs, the limiter slips instead of letting chains, gears or motors fail, then resumes once cleared.
Key Features
- Adjustable slip torque via spring nut
- Mounts sprockets, pulleys or gears between friction facings
- Resets automatically after overload is removed
Specifications
| Part No. |
Mass (kg) |
| TL14B15.5 |
|
| TL14B19.5 |
|
| TL14B23.5 |
|
| TL20B15.5 |
|
| TL20B19.5 |
|
| TL20B23.5 |
|
| TL700-1L |
8.4 |
| TL700-1L-B12.5 |
8.4 |
| TL700-1L-B9.5 |
8.4 |
How to Order
Confirm the size, bore range, required slip torque and the hub component to be mounted. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
