Description
TSUBAKI SR40 — Cam Clutch SR Series, genuine TSUBAKI product.
Overview
The Tsubaki Cam Clutch SR series is a one-way clutch in which cams wedge between inner and outer races to transmit torque in one rotational direction and allow free rotation in the other. Supplied in left-hand and right-hand versions, it is commonly applied as a backstop to keep inclined conveyors, bucket elevators and pumps from running backward when power is lost.
Key Features
- Cams wedge to lock in one direction only
- Left-hand and right-hand versions
- Prevents reverse rotation as a backstop
- Mounted on the shaft with keyed bore
Specifications
| Part No. |
Mass (kg) |
Type |
Dim. l (mm) |
Dim. D (mm) |
Z |
Dim. T (mm) |
W(mm) |
Dim. O (mm) |
Dim. I (mm) |
Dim. k (mm) |
Dim. Q (mm) |
Dim. V (mm) |
| SR40-LH |
10.4 |
Indirect type |
110 |
155 |
8×M8×1.25 |
2 |
58 |
53 |
1 |
13 |
136 |
23 |
| SR40-RH |
10.4 |
Indirect type |
110 |
155 |
8×M8×1.25 |
2 |
58 |
53 |
1 |
13 |
136 |
23 |
How to Order
Specify size, bore, rotation direction (LH or RH) and the backstop torque required. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

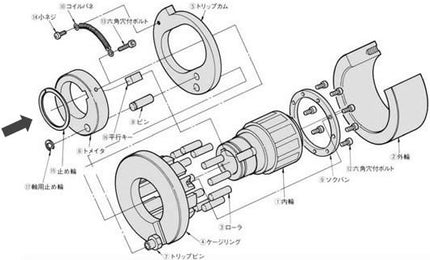

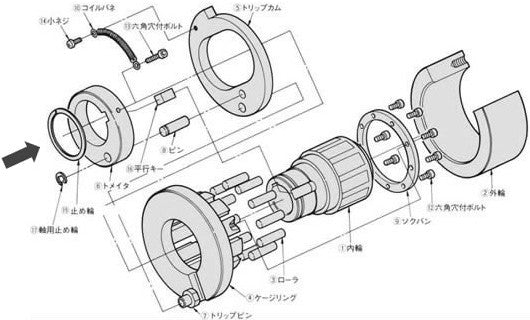

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.
