TSUBAKI H — Hypoid Gearmotor TA/TR/TE Series, genuine TSUBAKI product.
Overview
The Tsubaki hypoid gearmotor TA, TR and TE series combines a hypoid gear reducer with a motor in a compact right-angle unit. Hypoid gearing offers higher efficiency than worm gearing in right-angle drives. It is used in conveyors, material handling and packaging equipment. Several output and ratio combinations are offered.
Key Features
- Right-angle hypoid gear reduction

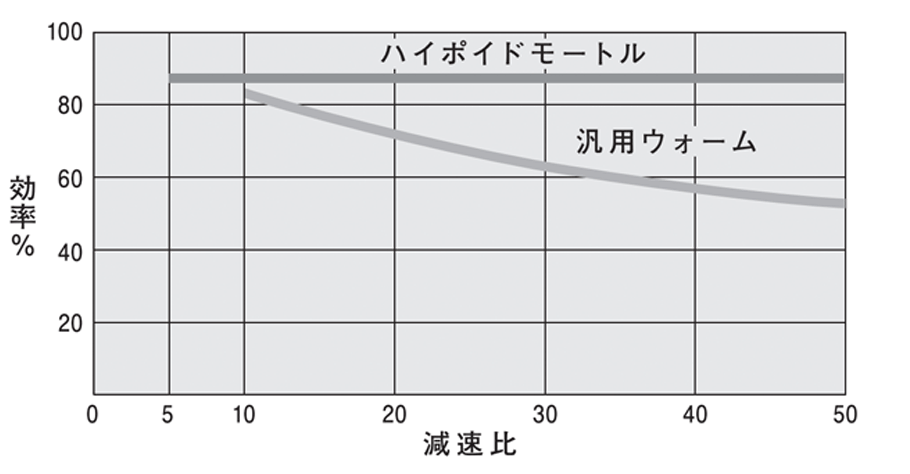

- Higher efficiency than worm gears
- Compact integrated motor
- Hollow or solid shaft options
Specifications
| Part No. |
Frame No. |
Brake |
Mounting Method |
Output Shaft Allowable O.H.L (N) |
Shaft Arrangement |
Power Supply |
Reduction Stages |
Actual Reduction Ratio |
