Description
TSUBAKI LP — Power Cylinder, genuine TSUBAKI product.
Overview
The TSUBAKI Power Cylinder is an electric linear actuator that uses a motor-driven screw to produce push and pull motion. It replaces hydraulic or pneumatic cylinders where clean, controllable operation is preferred. It is used in gate and damper operation, lifting, tilting and positioning equipment in industrial plants.
Key Features
- Electric motor-driven linear motion
- No hydraulic or pneumatic supply needed
- Holds position when stopped
Specifications
| Part No. |
Stroke (mm) |
Power Supply |
Rated Thrust (N) |
| LPF010H0.5 |
50 |
DC12V |
100 |
| LPF010H0.5V |
50 |
DC24V |
100 |
| LPF010H1.0 |
100 |
DC12V |
100 |
| LPF010H1.0V |
100 |
DC24V |
100 |
| LPF010H1.5 |
150 |
DC12V |
100 |
| LPF010H1.5V |
150 |
DC24V |
100 |
| LPF010H2.0 |
200 |
DC12V |
100 |
| LPF010H2.0V |
200 |
DC24V |
100 |
| LPF010H3.0 |
300 |
DC12V |
100 |
| LPF010H3.0V |
300 |
DC24V |
100 |
| LPF020M0.5 |
50 |
DC12V |
200 |
| LPF020M0.5V |
50 |
DC24V |
200 |
| LPF020M1.0 |
100 |
DC12V |
200 |
| LPF020M1.0V |
100 |
DC24V |
200 |
| LPF020M1.5 |
150 |
DC12V |
200 |
| LPF020M1.5V |
150 |
DC24V |
200 |
| LPF020M2.0 |
200 |
DC12V |
200 |
| LPF020M2.0V |
200 |
DC24V |
200 |
| LPF020M3.0 |
300 |
DC12V |
200 |
| LPF020M3.0V |
300 |
DC24V |
200 |
| LPF040L0.5 |
50 |
DC12V |
400 |
| LPF040L0.5V |
50 |
DC24V |
400 |
| LPF040L1.0 |
100 |
DC12V |
400 |
| LPF040L1.0V |
100 |
DC24V |
400 |
| LPF040L1.5 |
150 |
DC12V |
400 |
| LPF040L1.5V |
150 |
DC24V |
400 |
| LPF040L2.0 |
200 |
DC12V |
400 |
| LPF040L2.0V |
200 |
DC24V |
400 |
| LPF040L3.0 |
300 |
DC12V |
400 |
| LPF040L3.0V |
300 |
DC24V |
400 |
| LPF100H0.5 |
50 |
DC12V |
1000 |
| LPF100H0.5V |
50 |
DC24V |
1000 |
| LPF100H1.0 |
100 |
DC12V |
1000 |
| LPF100H1.0V |
100 |
DC24V |
1000 |
| LPF100H1.5 |
150 |
DC12V |
1000 |
| LPF100H1.5V |
150 |
DC24V |
1000 |
| LPF100H2.0 |
200 |
DC12V |
1000 |
| LPF100H2.0V |
200 |
DC24V |
1000 |
| LPF100H3.0 |
300 |
DC12V |
1000 |
| LPF100H3.0V |
300 |
DC24V |
1000 |
| LPF200M0.5 |
50 |
DC12V |
2000 |
| LPF200M0.5V |
50 |
DC24V |
2000 |
| LPF200M1.0 |
100 |
DC12V |
2000 |
| LPF200M1.0V |
100 |
DC24V |
2000 |
| LPF200M1.5 |
150 |
DC12V |
2000 |
| LPF200M1.5V |
150 |
DC24V |
2000 |
| LPF200M2.0 |
200 |
DC12V |
2000 |
| LPF200M2.0V |
200 |
DC24V |
2000 |
| LPF200M3.0 |
300 |
DC12V |
2000 |
| LPF200M3.0V |
300 |
DC24V |
2000 |
| LPTB4000-H |
|
|
|
| LPTB4000-HC |
|
|
|
How to Order
Confirm the thrust, stroke, speed and mounting style. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

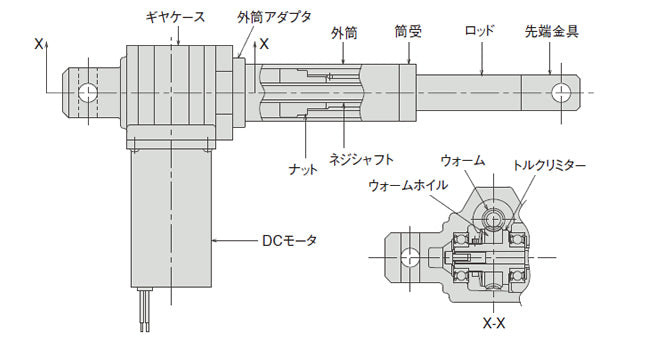

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
