Description
TSUBAKI RF2 — Double Pitch Chain Connecting Link C/L, genuine TSUBAKI product.
Overview
This connecting link joins the ends of Tsubaki double pitch roller chain. Double pitch chain has twice the pitch of standard roller chain, making it lighter and more economical for long conveyors and slow drives. The connecting link allows easy installation and length adjustment of these chains.
Key Features
- Designed for RF double pitch chain
- Allows quick chain installation and adjustment
- Matched to chain pitch and roller type
- Spring clip or cotter retention
Specifications
| Part No. |
Material (Body) |
Type |
Plate Width (mm) |
Pin Length (mm) |
Type |
Connection Pitch (mm) |
Type |
Chain Type |
Body Material |
Plate Thickness (mm) |
Link Width (mm) |
Material |
Max. Allowable Tension (kN) |
No. of Strands |
Pin Diameter (Ømm) |
Avg. Tensile Strength (kN) |
Pin Type |
Operating Temp. Range (℃) |
| RF2040-JL |
Steel |
|
12 |
8.25 |
9.95 |
|
25.4 |
|
Double pitch chain |
|
1.5 |
7.95 |
Steel |
2.65 |
|
3.97 |
|
Clip type |
| RF2050-JL |
|
|
15 |
10.30 |
12.0 |
Connecting link |
|
|
Double pitch chain |
Steel |
2 |
9.53 |
Steel |
4.31 |
1 |
5.09 |
|
Clip type |
| RF2060-JL |
|
Connecting link |
17.2 |
14.55 |
16.55 |
|
38.1 |
Roller chain |
Double pitch chain |
Steel |
3.2 |
|
|
6.28 |
|
5.96 |
40.2 |
|
| RF2080-JL |
|
|
|
18.30 |
20.90 |
Connecting link |
50.8 |
|
Double pitch chain |
Steel |
4 |
|
Steel |
10.7 |
1 |
|
68.6 |
Cotter pin type |
| RF2100-JL |
Steel |
|
28.6 |
21.80 |
24.50 |
|
63.5 |
|
Double pitch chain |
|
4.8 |
19.05 |
|
|
1 |
9.54 |
108 |
Cotter pin type |
How to Order
Confirm the double pitch chain size number and roller type. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

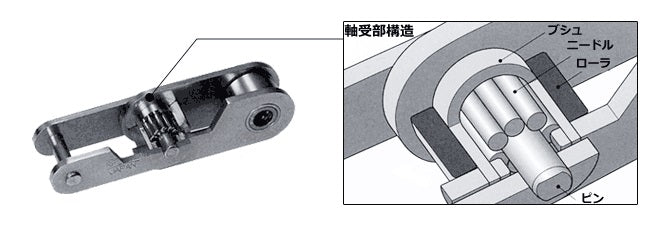

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
