Description
TSUBAKI MZ — Cam Clutch MZ Series, genuine TSUBAKI product.
Overview
The Tsubaki Cam Clutch MZ series is a one-way clutch with built-in bearings, used for overrunning and backstopping in heavy-duty drives. Cams engage to transmit torque in one direction while allowing free rotation in the other. It is common in conveyors, pumps and industrial gear drives.
Key Features
- Built-in bearings for radial support
- High torque capacity
- Overrunning or backstopping function
- Robust construction for heavy duty

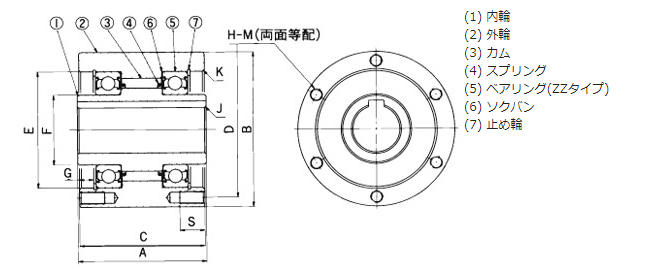

Specifications
| Part No. |
Rotational Speed (r/min) |
Width (W, mm) |
Bore Diameter (mm) |
Spigot Diameter E (mm) |
Motor Type |
Boss Diameter F (mm) |
Chamfer (mm) |
Spigot Depth G (mm) |
Outer Diameter B (Ømm) |
Mass (kg) |
| MZ20 |
(Inner) 1900 |
(Outer) 700 |
(Inner A) 67 (Outer C) 65 |
(Diameter H7) 20 (keyway) 6X2.8 (chamfer J) 0.8 |
(M6) 55 |
Clutch |
(Inner) 30 |
(K) 1.3 |
7.6 |
80 |
| MZ30 |
(Inner) 1800 |
(Outer) 500 |
(Inner A) 82 (Outer C) 80 |
(Diameter H7) 30 (keyway) 10X3.3 (chamfer J) 1.0 |
(M6) 75 |
Clutch |
(Inner) 45 |
(K) 1.3 |
8.9 |
100 |
How to Order
Confirm bore size, torque capacity and installation orientation. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

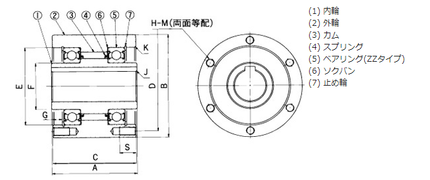

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.
