Description
TSUBAKI TL350-1 — Torque Limiter, genuine TSUBAKI product.
Overview

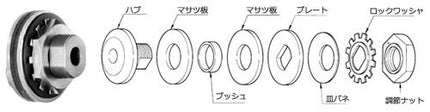

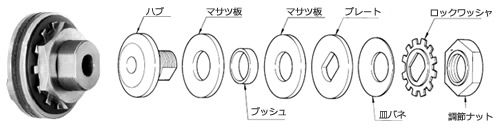

The TSUBAKI torque limiter protects drives from overload by slipping when torque exceeds a set value. A sprocket, pulley or gear is clamped between friction facings by an adjustable spring, so the slip torque can be tuned. When a jam occurs, the limiter slips instead of letting chains, gears or motors fail, then resumes once cleared.
Key Features
- Adjustable slip torque via spring nut
- Mounts sprockets, pulleys or gears between friction facings
- Resets automatically after overload is removed
Specifications
| Part No. |
Bore Diameter d2 (Ømm) |
Bore Diameter d1 (Ømm) |
Hole (Ømm) |
Pilot Bore Diameter (Ømm) |
Outer Diameter D (Ømm) |
Dim. T (mm) |
Type |
Dim. l (mm) |
Max. Speed (min-1r.p.m) |
Dim. s (mm) |
Torque Setting Range (N·m) |
| TL350-1 |
18 ~ 25 |
18 ~ 25 |
[Center member 49 (+ 0.05 ~ 0) |
17 |
89 |
4.5 |
Overload protection device |
19 |
1800 |
16 (max) |
20 ~ 74 |
How to Order
Confirm the size, bore range, required slip torque and the hub component to be mounted. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
Product image is representative of the TSUBAKI series; appearance varies by size and model.
