Description
TSUBAKI PL1AS — Power-Lock, genuine TSUBAKI product.
Overview

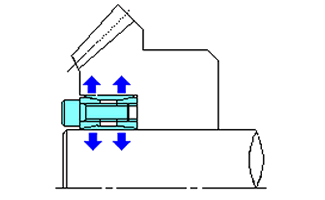

The TSUBAKI Power-Lock is a frictional keyless locking device for connecting hubs to shafts. Tapered rings driven by clamping bolts generate radial pressure that grips both shaft and hub. The inch-size versions listed here suit imperial shafts and are used on conveyors, machine tools and equipment built to inch standards.
Key Features
- Keyless connection with no keyway machining
- Hubs can be positioned and repositioned easily
- Inch shaft sizes available
Specifications
| Part No. |
Boss-Side Pressure (MPa[kgf/mm2) |
Bolt Tightening Torque (N·m) |
Applicable Shaft Diameter (Ømm) |
Allowable Thrust (N) |
Allowable Transmission Torque (N·m) |
Outer Diameter Ø (mm) |
Shaft-Side Pressure (MPa) |
Centering Function |
Mass (kg) |
| PL1AS |
116 |
18.3 |
25.4 |
38200 |
490 |
50 |
227 |
None |
0.22 |
How to Order
Confirm shaft diameter in inches, hub bore and torque requirement. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
