Description

Sensing type	Diffuse reflective type
Sensing distance	100mm
Sensing target	Opaque, Translucent material
Response time	Operation: Max. 3ms, Return: Max. 100ms
Light source	Infrared LED
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON
Weight	Approx. 75g(approx. 38g)
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 35mA
Control output	NPN open collector
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP50
Connection type	Cable type(Ø3.5, 2m)
Material	Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate

Product form

Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Response time Operation: Max. 3ms, Return: Max.... Read more

SKU: BYD100-DDT

$21.87 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Diffuse reflective type
Sensing distance	100mm
Sensing target	Opaque, Translucent material
Response time	Operation: Max. 3ms, Return: Max. 100ms
Light source	Infrared LED
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON
Weight	Approx. 75g(approx. 38g)
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 35mA
Control output	NPN open collector
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP50
Connection type	Cable type(Ø3.5, 2m)
Material	Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate

Reviews

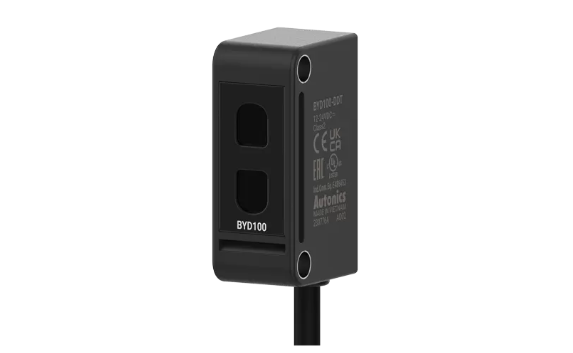

Name: Autonics Photoelectric Sensor, Photoelectric Type BYD100-DDT
