Description

Sensing type	Convergent reflective type
Sensing distance	10 to 30mm
Sensing target	Opaque, Translucent material
Response time	Operation: Max. 3ms, Return: Max. 100ms
Light source	Infrared LED
Operation mode	Light ON
Weight	Approx. 75g(approx. 38g)
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 35mA
Control output	NPN open collector
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP64
Connection type	Cable type(Ø3.5, 2m)
Material	Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate

Product form

Sensing type Convergent reflective type Sensing distance 10 to 30mm Sensing target Opaque, Translucent material Response time Operation: Max. 3ms,... Read more

SKU: BYD30-DDT

$18.23 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

Sensing type	Convergent reflective type
Sensing distance	10 to 30mm
Sensing target	Opaque, Translucent material
Response time	Operation: Max. 3ms, Return: Max. 100ms
Light source	Infrared LED
Operation mode	Light ON
Weight	Approx. 75g(approx. 38g)
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 35mA
Control output	NPN open collector
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP64
Connection type	Cable type(Ø3.5, 2m)
Material	Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate

Reviews

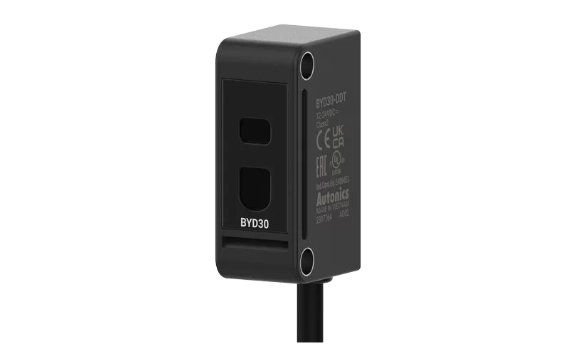

Name: Autonics Photoelectric Sensor, Photoelectric Type BYD30-DDT
Brand: Autonics
SKU: BYD30-DDT
Price: 18.23 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BYD30-DDT
