Description

Sensing type	Through-beam type
Sensing distance	3m
Sensing target	Opaque material of min. Ø6mm
Response time	Max. 1ms
Light source	Infrared LED
Operation mode	Dark ON
Weight	Approx. 105g(approx. 80g)
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 30mA
Control output	NPN open collector
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP64
Connection type	Cable type(Ø3.5, 2m)
Material	Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate

Product form

Sensing type Through-beam type Sensing distance 3m Sensing target Opaque material of min. Ø6mm Response time Max. 1ms Light source... Read more

SKU: BYD3M-TDT

$24.55 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

Sensing type	Through-beam type
Sensing distance	3m
Sensing target	Opaque material of min. Ø6mm
Response time	Max. 1ms
Light source	Infrared LED
Operation mode	Dark ON
Weight	Approx. 105g(approx. 80g)
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 30mA
Control output	NPN open collector
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP64
Connection type	Cable type(Ø3.5, 2m)
Material	Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate

Reviews

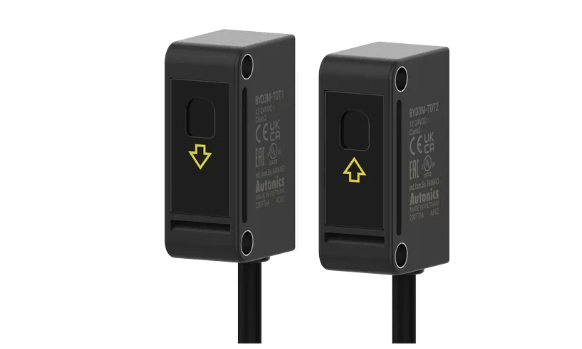

Name: Autonics Photoelectric Sensor, Photoelectric Type BYD3M-TDT
