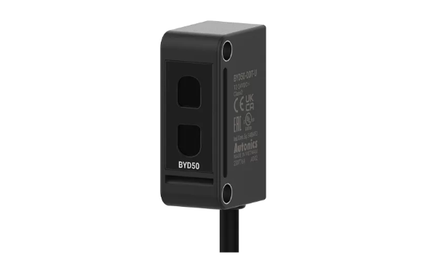

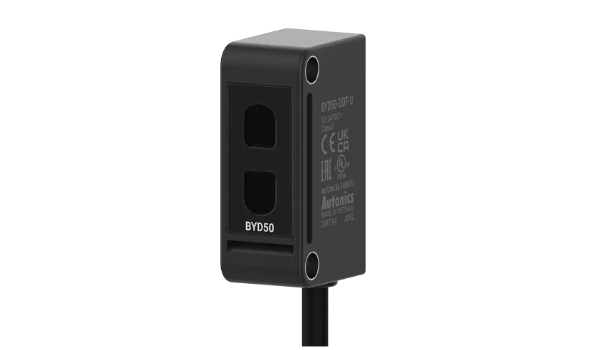

Autonics Photoelectric Sensor, Photoelectric Type BYD50-DDT-U 12-24VDC GL

Description

Sensing type Convergent reflective type
Sensing distance 10 to 50mm
Sensing target Opaque, Translucent material
Response time Operation: Max. 3ms, Return: Max. 100ms
Light source Infrared LED
Operation mode Light ON
Weight Approx. 75g(approx. 38g)
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Max. 35mA
Control output NPN open collector
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Protection structure IP50
Connection type Cable type(Ø3.5, 2m)
Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate
Product form

Sensing type Convergent reflective type Sensing distance 10 to 50mm Sensing target Opaque, Translucent material Response time Operation: Max. 3ms,... Read more

SKU: BYD50-DDT-U

$19.06 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Sensing type Convergent reflective type
    Sensing distance 10 to 50mm
    Sensing target Opaque, Translucent material
    Response time Operation: Max. 3ms, Return: Max. 100ms
    Light source Infrared LED
    Operation mode Light ON
    Weight Approx. 75g(approx. 38g)
    Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
    Current consumption Max. 35mA
    Control output NPN open collector
    Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Protection structure IP50
    Connection type Cable type(Ø3.5, 2m)
    Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate
