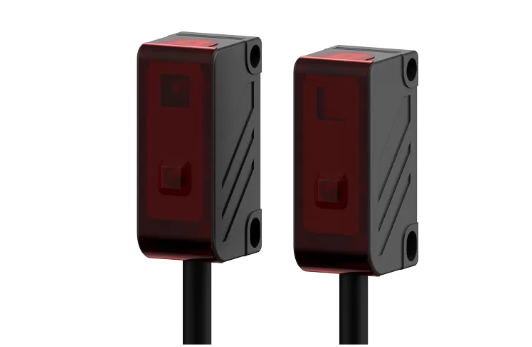

Autonics Photoelectric Sensor, Photoelectric Type BYS500-TDT1,2

Description

Sensing type Through-beam type(side sensing type)
Sensing distance 500mm
Sensing target Opaque material of min. Ø5mm
Response time Max. 1ms
Light source Infrared LED(940nm)
Operation mode Dark ON
Weight ≈ 150 g (≈ 200 g)
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 30mA
Control output NPN open collector
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -10 to 60℃, storage: -25 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Protection structure IP50
Connection type Cable type(Ø4, 2m)
Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM
Product form

Sensing type Through-beam type(side sensing type) Sensing distance 500mm Sensing target Opaque material of min. Ø5mm Response time Max. 1ms... Read more

SKU: BYS500-TDT1,2

$24.33 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    Sensing type Through-beam type(side sensing type)
    Sensing distance 500mm
    Sensing target Opaque material of min. Ø5mm
    Response time Max. 1ms
    Light source Infrared LED(940nm)
    Operation mode Dark ON
    Weight ≈ 150 g (≈ 200 g)
    Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
    Current consumption Emitter/Receiver: Max. 30mA
    Control output NPN open collector
    Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature -10 to 60℃, storage: -25 to 70℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Protection structure IP50
    Connection type Cable type(Ø4, 2m)
    Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM
