Description

Sensing type	Diffuse reflective type
Sensing distance	30mm(Non-glossy white paper 100×100mm), 15mm(Transparent glass 50×50mm, t=3.0mm)
Sensing target	Opaque, Translucent material(30mm), Transparent glass(15mm)
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Operation mode	Light ON
Control output	NPN open collector
Connection type	Cable type(Ø3.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP65
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% of sensing distance
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories	Fixing bracket, M3 bolt: 2, M3 nut: 2
Weight	Approx. 45g

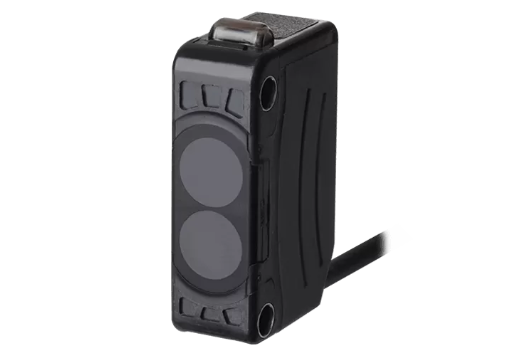

Product form

Sensing type Diffuse reflective type Sensing distance 30mm(Non-glossy white paper 100×100mm), 15mm(Transparent glass 50×50mm, t=3.0mm) Sensing target Opaque, Translucent material(30mm),... Read more

SKU: BJG30-DDT

$31.93 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Diffuse reflective type
Sensing distance	30mm(Non-glossy white paper 100×100mm), 15mm(Transparent glass 50×50mm, t=3.0mm)
Sensing target	Opaque, Translucent material(30mm), Transparent glass(15mm)
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Operation mode	Light ON
Control output	NPN open collector
Connection type	Cable type(Ø3.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP65
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% of sensing distance
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories	Fixing bracket, M3 bolt: 2, M3 nut: 2
Weight	Approx. 45g
