Description

Sensing type	Through-beam type
Sensing distance	10m
Sensing target	Opaque material of min. Ø15mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN open collector
Connection type	Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -40 to 70℃
Protection structure	IP65(IEC standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	ㆍCase: polycarbonate ㆍLED CAP: polycarbonate ㆍLens, Lens cover: polymethyl methacrylate
Accessories_Common	Mounting bracket, M3 bolt: 4, adjustment screwdriver
Weight	Approx. 145g(approx. 95g)

Product form

Sensing type Through-beam type Sensing distance 10m Sensing target Opaque material of min. Ø15mm Light source Red LED(660nm) Response time... Read more

SKU: BJX10M-TDT

$33.68 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Through-beam type
Sensing distance	10m
Sensing target	Opaque material of min. Ø15mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN open collector
Connection type	Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -40 to 70℃
Protection structure	IP65(IEC standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	ㆍCase: polycarbonate ㆍLED CAP: polycarbonate ㆍLens, Lens cover: polymethyl methacrylate
Accessories_Common	Mounting bracket, M3 bolt: 4, adjustment screwdriver
Weight	Approx. 145g(approx. 95g)

Reviews

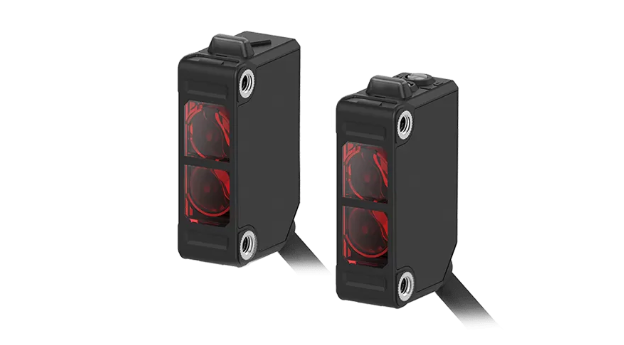

Name: Autonics Photoelectric Sensor, Photoelectric Type BJX10M-TDT
Brand: Autonics
SKU: BJX10M-TDT
Price: 33.68 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BJX10M-TDT
