Description

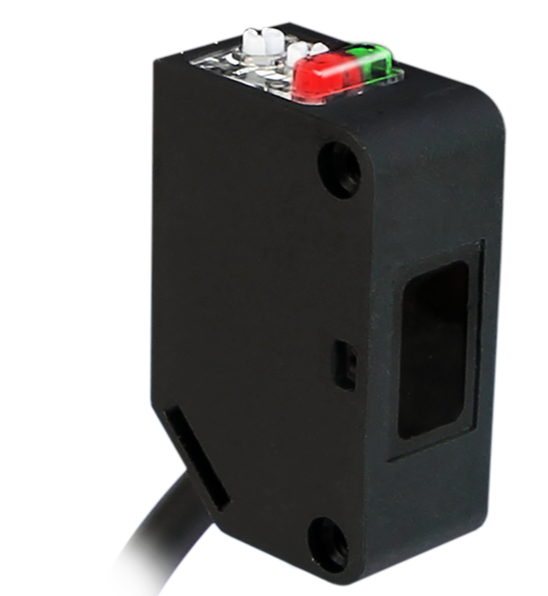

PB seriesGeneral Purpose Photoelectric Sensors

- 25.4mm standard mounting hole
- Hanyoung Nux new ASIC chip used (operation stability, long-distance detection)
- Built-in VR for sensitivity adjustment
- Convenient operation mode selection by VR
- You can check the presence of overload with the output short circuit notification function
- Excellent noise immunity and reduced disturbance of light influence
- Strong protection circuit

PB-R/D

Model	NPN	PB-R01N	PB-R04RN	PB-R1N	PB-D04N
Model	PNP	PB-R01P	PB-R04RP	PB-R1P	PB-D04P
Sensing mode		Diffuse-reflective			Distancesettable
Sensing distance		100 mm	400 mm	1 m	400 mm
Hysteresis distance		20 % or less of detection distance
Detecting object		White non-glossy paper (100 x 100 mm)
Light source (wavelength)		IR (860nm)	RED (640nm)	IR (860nm)
Current consumption		Max. 30 mA
Protection circuit	Common	▪Power reverse connection protection, ▪Output reverse connection protection, ▪Output short-circuit over-current protection, ▪Output short-circuit alarm (Note 2)
Protection circuit	Individual	Mutual interference prevention function
Accessory	Common	Brackets A, volt (M3 X 12 mm), Volume driver
	Individual	─
	Optional	Brackets B, Brackets C, Mirror (HY-M5S)
Weight		Approximately 50g

■ Specification

Power voltage		12 - 24 V d.c. ±10 % (Ripple max. 10 %)
Control output		NPN or PNP open collector output ▪Load current - max. 100 mA (26.4 V d.c. standard) ▪Residual voltage - NPN: max. 1 V, PNP : max. 1 V
Operation mode		Light ON / Dark ON switch
Response time		1 ms or less
Insulation Resistance		More than 20 MΩ (500 V d.c. mega)
Noise immunity		Square wave noise by noise simulator (pulse width 1 μs) ± 240 V
Dielectric strength		1,000 V a.c. (50/60 Hz for 1 minute)
Vibration resistance		10 - 55 Hz, Double amplitude : 1.5 mm, X·Y·Z 2 in each direction for 2 hours
Shock resistance		500 m/s², X·Y·Z each direction 3 times
Ambient illumination		▪Sunlight : max. 11,000 lx / Incandescent : max 3,000 lx
Ambient temperature		▪During operation : -25 ~ +55 ℃, During storage : -40 ~ +70 ℃ (Without condensation or icing)
Ambient humidity		▪35 ~ 85 % RH (Without condensation)
Degree of protection		IP65 (IEC standard)
Certification
Material	Case	PBT GF30 %
	Display	PC
	Lens	PC

Product form

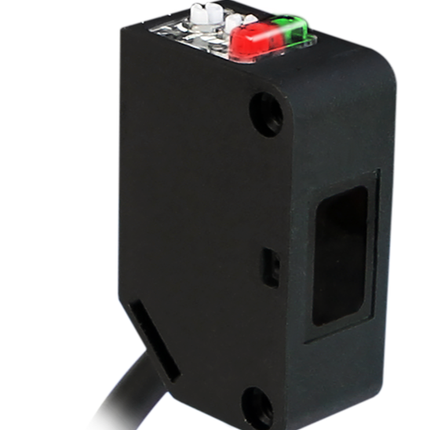

PB seriesGeneral Purpose Photoelectric Sensors - 25.4mm standard mounting hole- Hanyoung Nux new ASIC chip used (operation stability, long-distance detection)-... Read more
