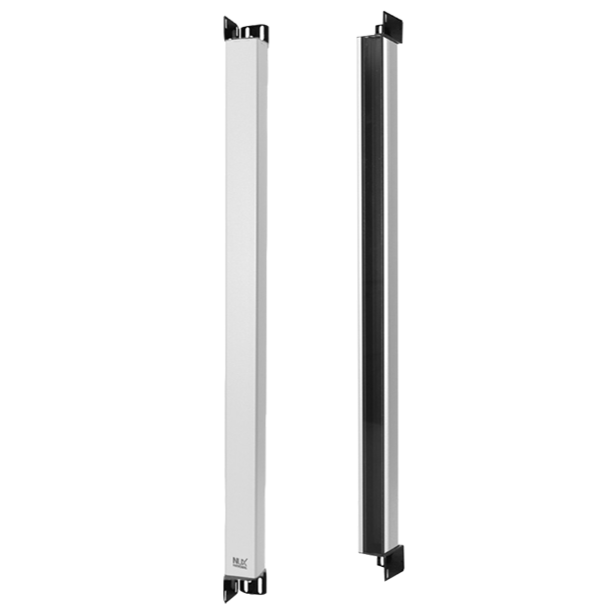

Type
|
Through beam
|
|
Model
|
NPN
|
PAN20-T□N
|
PAN40-T□N
|
|
PNP
|
PAN20-T□P
|
PAN40-T□P
|
|
Sensing distance
|
7 m
|
|
Sensing object
|
Opaque object over Ø32 ㎜
|
Opaque object over Ø52 ㎜
|
|
Optical axis pitch
|
20 ㎜
|
40 ㎜
|
|
Light source
|
IR (860nm)
|
|
Power voltage
|
12 - 24 VDC ±10% Ripple(p-p)10% max
|
|
Current consumption
|
Max. 170 ㎃
|
Max. 100 ㎃
|
|
Control output
|
• NPN / PNP open collector output
• Load Current: Max. 100mA (26.4VDC standard)
• Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V
|
|
Operation mode
|
Transmitter - M/S MODE switch-return type (Master / Slave)
Receiver - D/L MODE switch-return type (Dark ON / Light ON)
|
|
Operation LED
|
Transmitter : Power indicator(Green LED), M/S display(Red LED)
Receiver : Light on stability display(Green LED), output Display(Red LED),
E1 display(Red LED), E2 display(Blue LED)
|
|
Protection circuit
|
Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function
|
|
Response Time
|
Max. 15 ㎳
|
|
Insulation resistance
|
Min. 20 ㏁ (500 VDC mega standard)
|
|
Noise immunity
|
Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V
|
|
Dielectric strength
|
1,000 VAC (50/60 Hz 1min)
|
|
Vibration resistance
|
10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours
|
|
Shock resistance
|
500㎨ , X·Y·Z each direction 3 times
|
|
Ambient illumination
|
• Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux
|
|
Ambient temperature
|
During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing)
|
|
Ambient humidity
|
35 ~ 85 % R.H. (Without condensation)
|
|
Degree of protection
|
IP65 (IEC standard)
|
|
Approval
|
 |
|
Connection method
|
Relay connector type
(Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜)
|
|
Material
|
Case
|
Aluminum |
|
front cover
|
Acryl
|
|
lens
|
Acryl
|
