Description

PAN20 series

Type	A	B	C	D1	E1
PAN20-T8	227	214.2	197	7	140
PAN20-T12	307	294.2	277	11	220
PAN20-T16	387	374.2	357	15	300
PAN20-T20	467	454.2	437	19	380
PAN20-T24	547	534.2	517	23	460
PAN20-T28	627	614.2	597	27	540
PAN20-T32	707	694.2	677	31	620
PAN20-T36	787	774.2	757	35	700
PAN20-T40	867	854.2	837	39	780
PAN20-T44	947	934.2	917	43	860
PAN20-T48	1027	1014.2	997	47	940

■ PAN40 series

Type	A	B	C	D2	E2
PAN40-T4	227	214.2	197	3	120
PAN40-T6	307	294.2	277	5	200
PAN40-T8	387	374.2	357	7	280
PAN40-T10	467	454.2	437	9	360
PAN40-T12	547	534.2	517	11	440
PAN40-T14	627	614.2	597	13	520
PAN40-T16	707	694.2	677	15	600
PAN40-T18	787	774.2	757	17	680
PAN40-T20	867	854.2	837	19	760
PAN40-T22	947	934.2	917	21	840
PAN40-T24	1027	1014.2	997	23	920

Production formation

+ PAN20

- Detection : Through Beam

- Sensiong Distance : 7 m

Model	Number of optical axes	Detecting	Current Consumption (mA max)	Detectable object
PAN20-T8	8 EA	140 mm	70 mA	Opaque object above Ø32 mm
PAN20-T12	12 EA	220 mm	80 mA
PAN20-T16	16 EA	300 mm	90 mA
PAN20-T20	20 EA	380 mm	100 mA
PAN20-T24	24 EA	460 mm	110 mA
PAN20-T28	28 EA	540 mm	120 mA
PAN20-T32	32 EA	620 mm	130 mA
PAN20-T36	36 EA	700 mm	140 mA
PAN20-T40	40 EA	780 mm	150 mA
PAN20-T44	44 EA	860 mm	160 mA
PAN20-T48	48 EA	940 mm	170 mA

※ Output types (NPN, PNP) are omitted.

+ PAN40

- Detection : Through Beam

- Sensiong Distance : 7 m

Model	Number of optical axes	Detecting	Current Consumption (mA max)	Detectable object
PAN40-T4	4 EA	120 mm	50 mA	Opaque object above Ø52 mm
PAN40-T6	6 EA	200 mm	55 mA
PAN40-T8	8 EA	280 mm	60 mA
PAN40-T10	10 EA	360 mm	65 mA
PAN40-T12	12 EA	440 mm	70 mA
PAN40-T14	14 EA	520 mm	75 mA
PAN40-T16	16 EA	600 mm	80 mA
PAN40-T18	18 EA	680 mm	85 mA
PAN40-T20	20 EA	760 mm	90 mA
PAN40-T22	22 EA	840 mm	95 mA
PAN40-T24	24 EA	920 mm	100 mA

※ Output types (NPN, PNP) are omitted.

Product form

PAN20 series Type A B C D1 E1 PAN20-T8 227 214.2 197 7 140 PAN20-T12 307 294.2 277 11 220... Read more

SKU: PAN40-T24N

$562.32 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

PAN20 series

Type	A	B	C	D1	E1
PAN20-T8	227	214.2	197	7	140
PAN20-T12	307	294.2	277	11	220
PAN20-T16	387	374.2	357	15	300
PAN20-T20	467	454.2	437	19	380
PAN20-T24	547	534.2	517	23	460
PAN20-T28	627	614.2	597	27	540
PAN20-T32	707	694.2	677	31	620
PAN20-T36	787	774.2	757	35	700
PAN20-T40	867	854.2	837	39	780
PAN20-T44	947	934.2	917	43	860
PAN20-T48	1027	1014.2	997	47	940

■ PAN40 series

Type	A	B	C	D2	E2
PAN40-T4	227	214.2	197	3	120
PAN40-T6	307	294.2	277	5	200
PAN40-T8	387	374.2	357	7	280
PAN40-T10	467	454.2	437	9	360
PAN40-T12	547	534.2	517	11	440
PAN40-T14	627	614.2	597	13	520
PAN40-T16	707	694.2	677	15	600
PAN40-T18	787	774.2	757	17	680
PAN40-T20	867	854.2	837	19	760
PAN40-T22	947	934.2	917	21	840
PAN40-T24	1027	1014.2	997	23	920

Production formation

+ PAN20

- Detection : Through Beam

- Sensiong Distance : 7 m

Model	Number of optical axes	Detecting	Current Consumption (mA max)	Detectable object
PAN20-T8	8 EA	140 mm	70 mA	Opaque object above Ø32 mm
PAN20-T12	12 EA	220 mm	80 mA
PAN20-T16	16 EA	300 mm	90 mA
PAN20-T20	20 EA	380 mm	100 mA
PAN20-T24	24 EA	460 mm	110 mA
PAN20-T28	28 EA	540 mm	120 mA
PAN20-T32	32 EA	620 mm	130 mA
PAN20-T36	36 EA	700 mm	140 mA
PAN20-T40	40 EA	780 mm	150 mA
PAN20-T44	44 EA	860 mm	160 mA
PAN20-T48	48 EA	940 mm	170 mA

※ Output types (NPN, PNP) are omitted.

+ PAN40

- Detection : Through Beam

- Sensiong Distance : 7 m

Model	Number of optical axes	Detecting	Current Consumption (mA max)	Detectable object
PAN40-T4	4 EA	120 mm	50 mA	Opaque object above Ø52 mm
PAN40-T6	6 EA	200 mm	55 mA
PAN40-T8	8 EA	280 mm	60 mA
PAN40-T10	10 EA	360 mm	65 mA
PAN40-T12	12 EA	440 mm	70 mA
PAN40-T14	14 EA	520 mm	75 mA
PAN40-T16	16 EA	600 mm	80 mA
PAN40-T18	18 EA	680 mm	85 mA
PAN40-T20	20 EA	760 mm	90 mA
PAN40-T22	22 EA	840 mm	95 mA
PAN40-T24	24 EA	920 mm	100 mA

※ Output types (NPN, PNP) are omitted.

Reviews

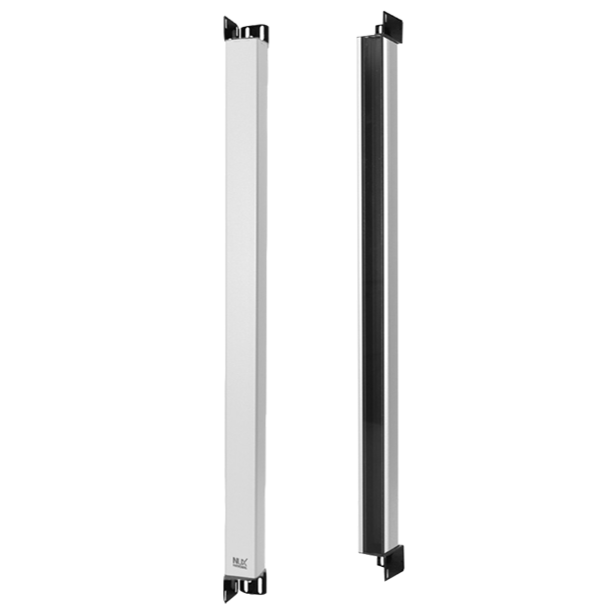

Name: Hanyoung Nux Highly reliable photo area sensor, PAN40-T24N
