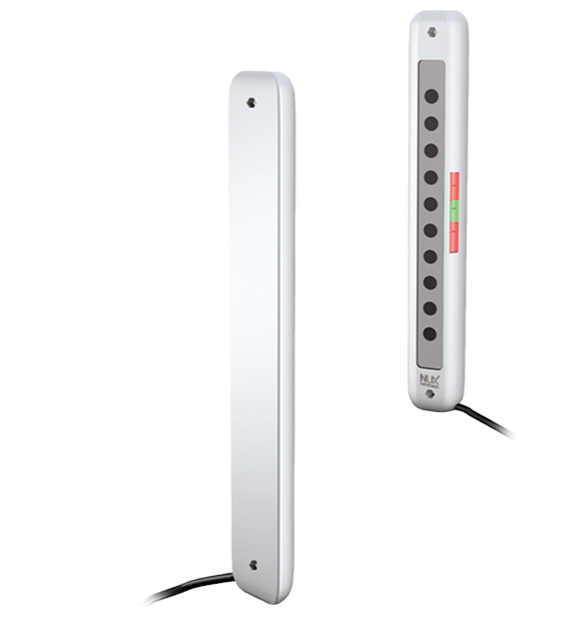

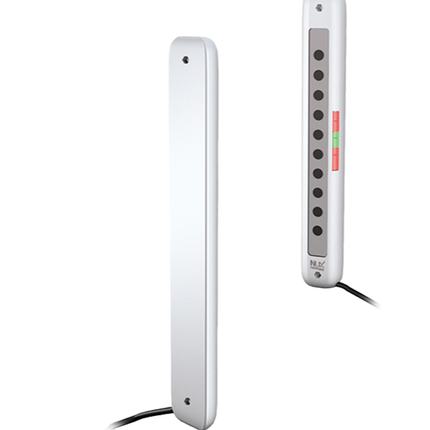

odel
|
NPN
|
PAS-T4NL
|
PAS-T8NL
|
PAS-T12NL
|
PAS-T16NL
|
PAS-T20NL
|
|
PAS-T4ND
|
PAS-T8ND
|
PAS-T12ND
|
PAS-T16ND
|
PAS-T20ND
|
|
PNP
|
PAS-T4PL
|
PAS-T8PL
|
PAS-T12PL
|
PAS-T16PL
|
PAS-T20PL
|
|
PAS-T4PD
|
PAS-T8PD
|
PAS-T12PD
|
PAS-T16PD
|
PAS-T20PD
|
|
Number of optical axis
|
4
|
8
|
12
|
16
|
20
|
|
Sensing width
|
60 mm
|
140 mm
|
220 mm
|
300 mm
|
380 mm
|
|
Sensing distance
|
5 m
|
|
Sensing object
|
Opaque object over Ø30 ㎜
|
|
Optical axis pitch
|
20 mm
|
|
Light source
|
IR (860nm)
|
|
Power voltage
|
12 - 24 VDC ±10% Ripple(p-p)10% Max
|
|
Current consumption
|
Max. 80 ㎃
|
Max. 90 ㎃
|
Max. 100 ㎃
|
Max. 110 ㎃
|
Max. 120 ㎃
|
|
Control output
|
NPN / PNP open collector output
• Load Current: Max. 100mA (26.4VDC standard)
• Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V
|
|
Operation mode
|
Light On or Dark On
|
|
Operation LED
|
• Transmitter : Power indicator(Green LED), M/S display(Red LED)
• Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED)
|
|
Protection circuit
|
• Power reverse connection protection,
• Output short-circuit over-current protection,
• Mutual interference prevation function
|
|
Response Time
|
Max. 7 ㎳
|
|
Insulation resistance
|
Min. 20 ㏁ (500 VDC mega standard)
|
|
Noise immunity
|
Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V
|
|
Dielectric strength
|
1,000 VAC (50/60 Hz 1min)
|
|
Vibration resistance
|
10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours
|
|
Shock resistance
|
500 m/s², X·Y·Z each direction 3 times
|
|
Ambient illumination
|
Sunlight : Max. 10,000 Lux, Incandescent lamp : Max. 3,000 Lux
|
|
Ambient temperature
|
• During operation : -10 ~ +55 ℃,
• During storage : -25 ~ +70 ℃ (Without condensation or icing)
|
|
Ambient humidity
|
35 ~ 85 % R.H. (Without condensation)
|
|
Degree of protection
|
IP40 (IEC standard)
|
|
Approval
|
 |
|
Connection method
|
cable withdrawal type (Number of wires : 5P, Code length : 3m , Dimension : Ø4mm)
|
|
Material
|
Case
|
ABS
|
|
front cover
|
Acryl
|
|
lens
|
Acryl
|
|
weight
|
160g
|
180g
|
200g
|
220g
|
240g
|
