Peacock Back Plunger Type Dial Gauges; 0.01mm , 196B

  • VendorPEACOCK

Description

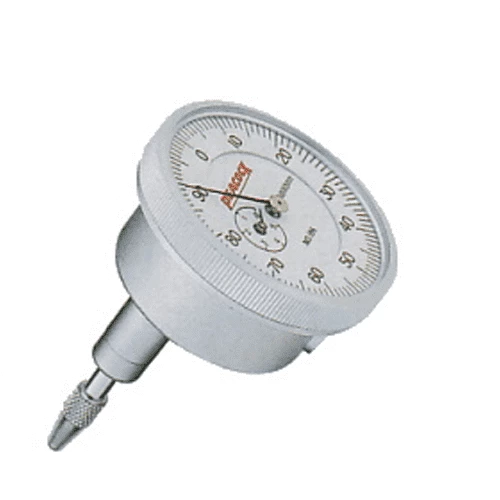

Peacock Back Plunger Type Dial Gauges; 0.01mm , 196B

  • Model 196B
  • Graduation 0.01mm
  • Range 5mm
  • Stem Ø8mm
  • Contact point ( X-112 )



  • The back plunger dial gauge is characterized with easy handling since the spindle having the contact point moves in the direction perpendicular to the dial face and the gauge is more compact.
  • The dial gauge of this type is convenient for use in achieving a parallelism of the table of the machine tool, with measuring jigs, in restricted areas and on locations where scale reading is difficult.
Graduation  (mm) Range (mm) Reading Indication error (µm) Backward error (µm) Repeatability (µm) Measuring force less than (N)
Revolution Whole measuring range
1/10 1/2 One Two
0.01 5 0-50-100 10 ±12 ±15 ±20 ±20 6 5 1.4



Dimensions (mm)
A B C D E F G H I
58.5 38 12.5 4.5 - - - 5.5 16.5



Product form

Peacock Back Plunger Type Dial Gauges; 0.01mm , 196B Model 196B  Graduation 0.01mm  Range 5mm  Stem Ø8mm Contact point (... Read more

SKU: 196-B

$109.43 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 24, 2024 17:00:00 +0900

    Description

    Peacock Back Plunger Type Dial Gauges; 0.01mm , 196B

    • Model 196B
    • Graduation 0.01mm
    • Range 5mm
    • Stem Ø8mm
    • Contact point ( X-112 )



    • The back plunger dial gauge is characterized with easy handling since the spindle having the contact point moves in the direction perpendicular to the dial face and the gauge is more compact.
    • The dial gauge of this type is convenient for use in achieving a parallelism of the table of the machine tool, with measuring jigs, in restricted areas and on locations where scale reading is difficult.
    Graduation  (mm) Range (mm) Reading Indication error (µm) Backward error (µm) Repeatability (µm) Measuring force less than (N)
    Revolution Whole measuring range
    1/10 1/2 One Two
    0.01 5 0-50-100 10 ±12 ±15 ±20 ±20 6 5 1.4



    Dimensions (mm)
    A B C D E F G H I
    58.5 38 12.5 4.5 - - - 5.5 16.5
