Peacock Dial Thickness Gauges G

  • VendorPEACOCK

Description

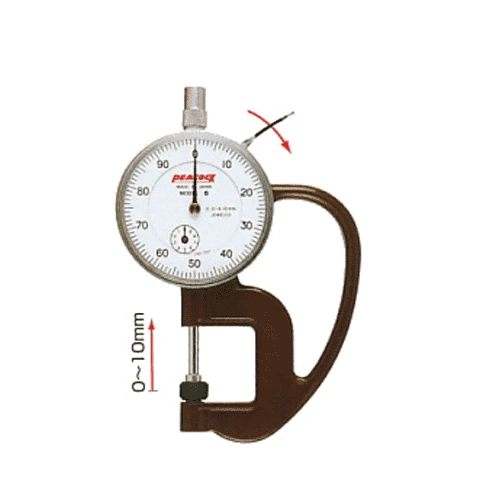

Peacock Dial Thickness Gauges G

  • These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
  • The objects to be measured is clamped by simple lever operation.
  • The measured values are read directly on the dial gauge.
  • Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
Model G
Graduation 0.01mm
Range 0 - 10mm
  • Ø10mm flat contact point and anvil (ceramic)
Specifications
Model Graduation(mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Measuring force less than (N)
Dia (mm) Parallelism (µm)
G 0.01 0 - 10 20 ±20 10 5 1.8

[PEACOCK] Dial Thickness Gauges G

Product form

Peacock Dial Thickness Gauges G These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl,... Read more

SKU: G

$98.68 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    Peacock Dial Thickness Gauges G

    • These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
    • The objects to be measured is clamped by simple lever operation.
    • The measured values are read directly on the dial gauge.
    • Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
    Model G
    Graduation 0.01mm
    Range 0 - 10mm
    • Ø10mm flat contact point and anvil (ceramic)
    Specifications
    Model Graduation(mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Measuring force less than (N)
    Dia (mm) Parallelism (µm)
    G 0.01 0 - 10 20 ±20 10 5 1.8

    [PEACOCK] Dial Thickness Gauges G
