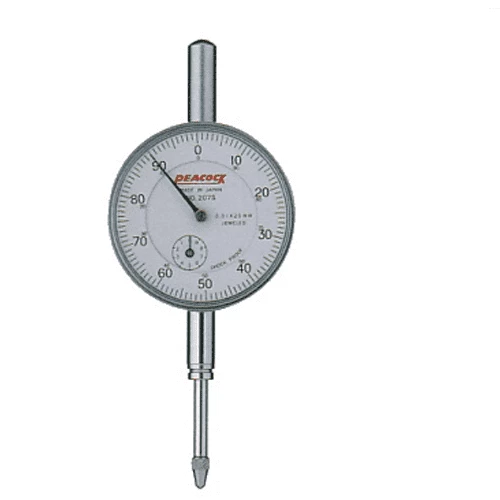

Peacock Long Travel Dial Gauges; 0.01mm, 0.05mm, and 0.1mm JMAS 2001 , 207S
Dial Gauges are widely used manufacturing plants.
○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.
Model 207S
Graduation 0.01mm
Range 20mm
Small dial face type ( Ø53mm )
Lug back
|
Model
|
Graduation (mm)
|
Range (mm)
|
Reading
|
Indication error (µm)
|
Backward error (µm)
|
Repeatability (µm)
|
Measuring force less than (N)
|
|
Revolution
|
Whole measuring range
|
|
|
1/10
|
1/2
|
One
|
Two
|
|
207S
|
0.01
|
20
|
±0 -50- 100
|
10
|
-
|
±15
|
-
|
±20
|
7
|
5
|
2.0
|
| Dimensions (mm) |
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| 207S |
75 |
50.5 |
18.5 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
