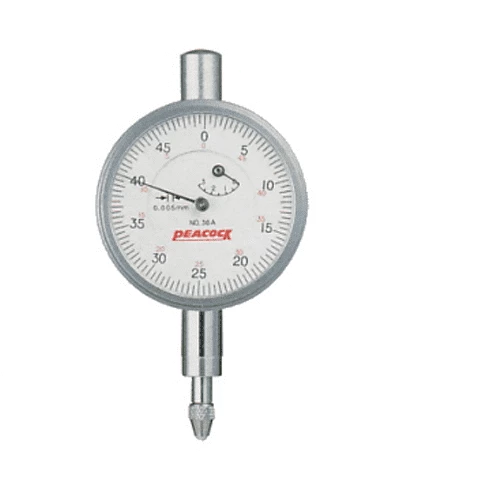

Peacock Miniature Dial Gauges; 0.005mm, 36A , Range 3mm

  • VendorPEACOCK

Description

Peacock Miniature Dial Gauges; 0.005mm, 36A , Range 3mm

  • Model 36A
  • Graduation 0.005mm
  • Range 3mm
  • Contact point ( X-107 )
  • Lug back
  • Dial dia. Ø40.8mm

                          These compact size dial gauges are equipped with small dial faces.
                          They are especially useful for measuring jigs, in restricted areas.

                          Model

                          Graduation  (mm)

                          Range (mm)

                          Reading

                          Indication error (µm)

                          Backward error (µm)

                          Repeatability (µm)

                          Measuring force less than (N)

                          Revolution

                          Whole measuring range

                          1/10

                          1/2

                          One

                          Two

                          36A

                          0.005

                          3

                          ±0-25-50

                          9 -

                          ±13

                          -

                          ±15

                          6

                          5

                          1.4



                          Dimensions (mm)
                          Model A B C D E F G H I
                          36A 46.2 30.5 12.9 40.8 12.5 19 4 5.1 37



                          Product form

                          Peacock Miniature Dial Gauges; 0.005mm, 36A , Range 3mm Model 36A  Graduation 0.005mm  Range 3mm  Contact point ( X-107 )... Read more

                          SKU: 36A

                          $135.16 Excl. VAT

                            • Quick delivery worldwide
                            • Satisfied or refunded
                            • Secure payments Paypal

                              Description

                              Peacock Miniature Dial Gauges; 0.005mm, 36A , Range 3mm

                              • Model 36A
                              • Graduation 0.005mm
                              • Range 3mm
                              • Contact point ( X-107 )
                              • Lug back
                              • Dial dia. Ø40.8mm

                                                      These compact size dial gauges are equipped with small dial faces.
                                                      They are especially useful for measuring jigs, in restricted areas.

                                                      Model

                                                      Graduation  (mm)

                                                      Range (mm)

                                                      Reading

                                                      Indication error (µm)

                                                      Backward error (µm)

                                                      Repeatability (µm)

                                                      Measuring force less than (N)

                                                      Revolution

                                                      Whole measuring range

                                                      1/10

                                                      1/2

                                                      One

                                                      Two

                                                      36A

                                                      0.005

                                                      3

                                                      ±0-25-50

                                                      9 -

                                                      ±13

                                                      -

                                                      ±15

                                                      6

                                                      5

                                                      1.4



                                                      Dimensions (mm)
                                                      Model A B C D E F G H I
                                                      36A 46.2 30.5 12.9 40.8 12.5 19 4 5.1 37



                                                      Reviews

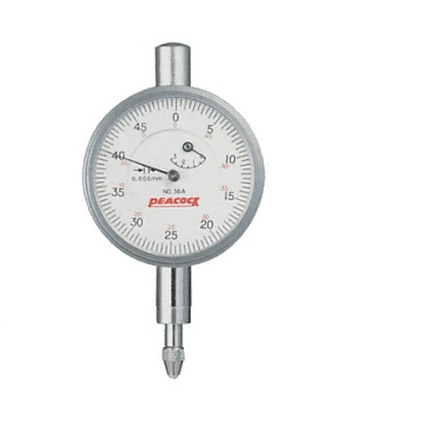

                                                      [PEACOCK] Miniature Dial Gauges; 0.005mm, 36A , Range 3mm
