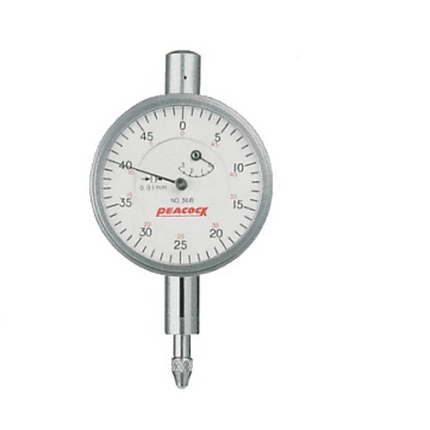

Peacock Miniature Dial Gauges; 0.01mm, 36B , Range 3mm

  • VendorPEACOCK

Description

Peacock Miniature Dial Gauges; 0.01mm, 36B , Range 3mm

  • Model 36B
  • Graduation 0.01mm
  • Range 3mm
  • Contact point ( X-107 )
  • Lug back
  • Dial dia. Ø40.8mm

                          These compact size dial gauges are equipped with small dial faces.
                          They are especially useful for measuring jigs, in restricted areas.

                          Model

                          Graduation  (mm)

                          Range (mm)

                          Reading

                          Indication error (µm)

                          Backward error (µm)

                          Repeatability (µm)

                          Measuring force less than (N)

                          Revolution

                          Whole measuring range

                          1/10

                          1/2

                          One

                          Two

                          36B

                          0.01

                          3

                          0-25-50

                          9 -

                          ±13

                          -

                          ±15

                          6

                          5

                          1.4



                          Dimensions (mm)
                          Model A B C D E F G H I
                          36B 46.2 30.5 12.9 40.8 12.5 19 4 5.1 37



                          Product form

                          Peacock Miniature Dial Gauges; 0.01mm, 36B , Range 3mm Model 36B Graduation 0.01mm  Range 3mm  Contact point ( X-107 )... Read more

                          SKU: 36B

                          $190.00 Excl. VAT

                            • Ships within 5–10 business days
                            • Ships from South Korea
                            • Export packing available
                            • Worldwide shipping
                            • Secure payments Paypal
