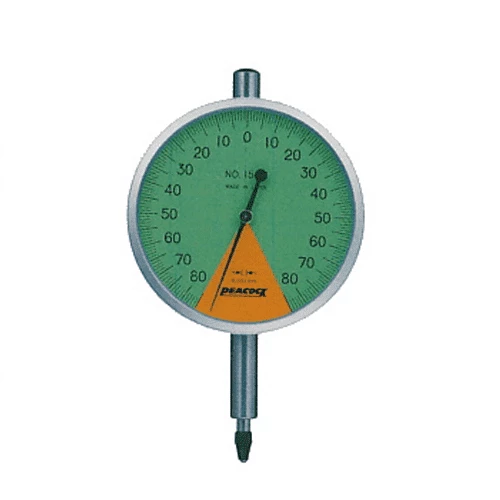

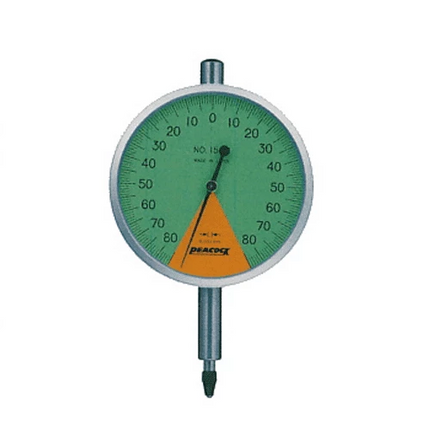

Peacock One Revolution Dial Gauges; 0.001mm, 15DZ, Range 0.16mm,Large dial face ( Ø66.5 )

  • VendorPEACOCK

Description

Peacock One Revolution Dial Gauges; 0.001mm, 15DZ, Range 0.16mm,Large dial face ( Ø66.5 )

  • Model 15DZ
  • Graduation 0.001mm
  • Range 0.16mm
  • Large dial face ( Ø66.5 )
  • Contact Point ( XB-1 )
  • Flat back

      These are high-accuracy dial gauges with the pointer giving less than a full turn that can resist rigorous rigorous continuous measurement.
      The long stem is made of stainless steel, is high in strenght and is malfunction-freedue to fastening.
      The dial faces except No. 18 and 17B are easy to read with green and orange
      (dead zone)

      Model Graduation  (mm)

      Range (mm)

      (Free stroke)

      		 Reading Indication error (µm) Backward error (µm) Repeatability (µm) Measuring force less than (N)
      Revolution Whole measuring range
      1/10 1/2 One Two
      15DZ 0.001 0.16(3.0) 80-0-80 2.5 ±3 ±4 - - 3 0.7 1.5



      Dimensions (mm)
      Model A B C D E F G H I
      15DZ 69.4 41.5 23.7 66.5 15.5 20 4 7.6 49



      Product form

      Peacock One Revolution Dial Gauges; 0.001mm, 15DZ, Range 0.16mm,Large dial face ( Ø66.5 ) Model 15DZ  Graduation 0.001mm  Range 0.16mm ... Read more

      SKU: 15-DZ

      $310.10 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal
