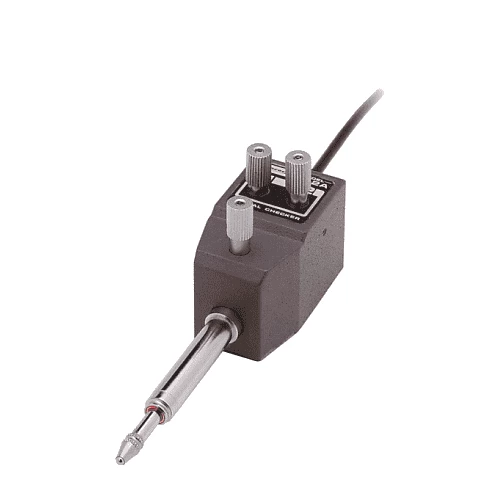

Peacock Signal Gauge SC-2A ( Signal Checker )

  • VendorPEACOCK

Description

Peacock Signal Gauge SC-2A ( Signal Checker )

Model

SC-2A ( Signal Checker )
Measurement range 3.0 mm



  • Once its tolerance is set, a dial gauge is dismounted before using it so that its endurance is really improved.
  • With its large tolerance setting range of 3mm, it is most suitable for judgement of the measured values ina wide tolerance range.
Specifications
Model SC-2A
Spindle Movable Range 10mm
Graduation ※1
Tolerance Setting Range 3.0 mm
Accuracy ±0.005mm
Measuring Force Less than 1.2N ( 120gf )
Contact capacity MAX DC24V  20mA
Number of judgement Stages Three stages of -NG, OK and +NG
Cord length 2 m
Stem diameter ø8 mm
Operating temperature range 0 - 60 ℃
Options Dial gauge for setting
Dial indicator for setting Model 107F, 5F
Weight 150 g
Cable signal table 　
Caution When the current of 10 to 20 mA is used to drive a photocoupler, etc., the contact may be worn a little earlier.
In SC-2A type, the COM terminal is body-grounded ( If leak current is found in other devices, put a gauge into floating status before mounting it ).
In SC-2A type, a spindle can be set in a range from its free status to 3mm. Although it may be movable in excess of this limit, you cannot set it in such an excessive level in order to protect the spindle.
In SC-2A type, when a dial gauge is dismounted after setting the tolerance, never forget to mount a dust protective cap.



[PEACOCK] Signal Gauge SC-2A ( Signal Checker )



Product form

Peacock Signal Gauge SC-2A ( Signal Checker ) Model SC-2A ( Signal Checker ) Measurement range 3.0 mm   Once... Read more

SKU: SC-2A

$786.53 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    Peacock Signal Gauge SC-2A ( Signal Checker )

    Model

    SC-2A ( Signal Checker )
    Measurement range 3.0 mm



    • Once its tolerance is set, a dial gauge is dismounted before using it so that its endurance is really improved.
    • With its large tolerance setting range of 3mm, it is most suitable for judgement of the measured values ina wide tolerance range.
    Specifications
    Model SC-2A
    Spindle Movable Range 10mm
    Graduation ※1
    Tolerance Setting Range 3.0 mm
    Accuracy ±0.005mm
    Measuring Force Less than 1.2N ( 120gf )
    Contact capacity MAX DC24V  20mA
    Number of judgement Stages Three stages of -NG, OK and +NG
    Cord length 2 m
    Stem diameter ø8 mm
    Operating temperature range 0 - 60 ℃
    Options Dial gauge for setting
    Dial indicator for setting Model 107F, 5F
    Weight 150 g
    Cable signal table 　
    Caution When the current of 10 to 20 mA is used to drive a photocoupler, etc., the contact may be worn a little earlier.
    In SC-2A type, the COM terminal is body-grounded ( If leak current is found in other devices, put a gauge into floating status before mounting it ).
    In SC-2A type, a spindle can be set in a range from its free status to 3mm. Although it may be movable in excess of this limit, you cannot set it in such an excessive level in order to protect the spindle.
    In SC-2A type, when a dial gauge is dismounted after setting the tolerance, never forget to mount a dust protective cap.



    [PEACOCK] Signal Gauge SC-2A ( Signal Checker )
