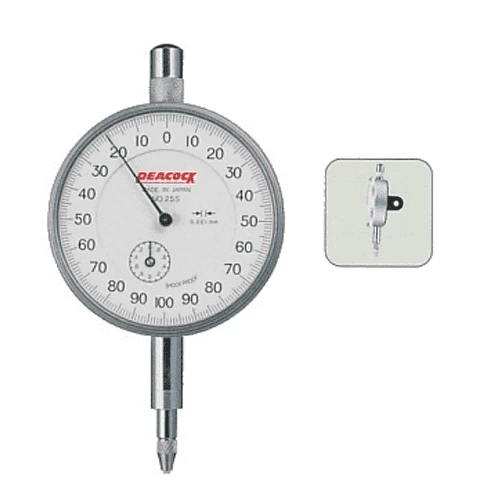

Peacock Standard Dial Gauges; 0.001mm, 25S ,Range 2mm, Small dial face type( Ø55.7mm )

  • VendorPEACOCK

Description

Peacock Standard Dial Gauges; 0.001mm,  25S ,Range 2mm, Small dial face type( Ø55.7mm )

  • Model 25S
  • Graduation 0.001mm
  • Range 2mm
  • Small dial face type ( Ø55.7mm )
  • Lug back

              Dial Gauges are widely used manufacturing plants.
              ○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
              ○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
              ○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
              ○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.



              Model

              Graduation  (mm)

              Range (mm)

              Reading

              Indication error (µm)

              Backward error (µm)

              Repeatability (µm)

              Measuring force less than (N)

              Revolution

              Whole measuring range

              1/10

              1/2

              One

              Two
              25S

              0.001

              2

              0 -100-0

              		 4 ±5

              ±6

              		 ±6

              ±7

              3

              		 0.5

              1.5



              Dimensions (mm)
              Model A B C D E F G H I
              25S 60 42.6 17 55.7 14.5 20 5 7 52



              Product form

              Peacock Standard Dial Gauges; 0.001mm,  25S ,Range 2mm, Small dial face type( Ø55.7mm ) Model 25S  Graduation 0.001mm  Range 2mm ... Read more

              SKU: 25S

              $207.34 Excl. VAT

                • Ships within 5–10 business days
                • Ships from South Korea
                • Export packing available
                • Worldwide shipping
                • Secure payments Paypal
                Need a bulk or multi-brand quotation?

                Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
                Korean brands at ProSource MRO — operated by the same team.

                Request a Bulk Quote →
