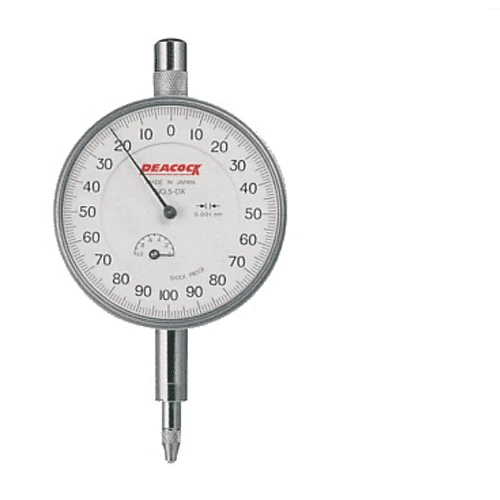

Peacock Standard Dial Gauges; 0.001mm, 5-DX ,Range 1mm

  • VendorPEACOCK

Description

Peacock Standard Dial Gauges; 0.001mm,  5-DX ,Range 1mm

  • Model 5-DX
  • Graduation 0.001mm
  • Range 1mm
  • Durable type (Spindle Ø5mm)
  • Lug back

          Dial Gauges are widely used manufacturing plants.
          ○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
          ○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
          ○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
          ○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.



          Model

          Graduation  (mm)

          Range (mm)

          Reading

          Indication error (µm)

          Backward error (µm)

          Repeatability (µm)

          Measuring force less than (N)

          Revolution

          Whole measuring range

          1/10

          1/2

          One

          Two

          5-DX

          0.001

          1

          0 -100-0

          2.5 ±3

          ±4

          ±4

          ±5

          3

          0.5

          1.5



          Dimensions (mm)
          Model A B C D E F G H I
          5-DX 60 42.6 17 55.7 14.5 20 5 7 52



          Product form

          Peacock Standard Dial Gauges; 0.001mm,  5-DX ,Range 1mm Model 5-DX  Graduation 0.001mm  Range 1mm  Durable type (Spindle Ø5mm) Lug back... Read more

          SKU: 5-DX

          $214.94 Excl. VAT

            • Quick delivery worldwide
            • Satisfied or refunded
            • Secure payments Paypal
            • Shipped today? Order within: Oct 15, 2024 17:00:00 +0900
