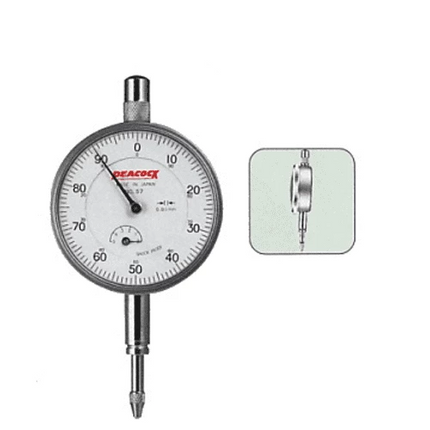

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 57F

  • VendorPEACOCK

Description

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 57F

Dial Gauges are widely used manufacturing plants.
○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

Model 57F
Graduation 0.01mm
Range 5mm
Flat back



Model

Graduation  (mm)

Range (mm)

Reading

Indication error (µm)

Backward error (µm)

Repeatability (µm)

Measuring force less than (N)

Revolution

Whole measuring range

1/10

1/2

One

Two
57F

0.01

5

±0 -50- 100

8

±9

±10

±15

±15

5

5

1.4



Dimensions (mm)
Model A B C D E F G H I
57F 65 41.5 18.5 53 14.5 - 4 6.5 49



Product form

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 57F Dial Gauges are widely used manufacturing plants. ○ The stem,... Read more

SKU: 57-F

$73.76 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 57F

    Dial Gauges are widely used manufacturing plants.
    ○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
    ○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
    ○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
    ○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

    Model 57F
    Graduation 0.01mm
    Range 5mm
    Flat back



    Model

    Graduation  (mm)

    Range (mm)

    Reading

    Indication error (µm)

    Backward error (µm)

    Repeatability (µm)

    Measuring force less than (N)

    Revolution

    Whole measuring range

    1/10

    1/2

    One

    Two
    57F

    0.01

    5

    ±0 -50- 100

    8

    ±9

    ±10

    ±15

    ±15

    5

    5

    1.4



    Dimensions (mm)
    Model A B C D E F G H I
    57F 65 41.5 18.5 53 14.5 - 4 6.5 49
