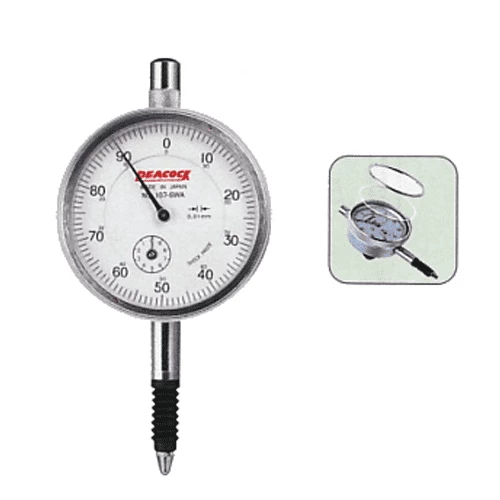

Peacock Standard Dial Gauges; 0.01mm , Oil-proof type , 107-SWA

  • VendorPEACOCK

Description

Peacock Standard Dial Gauges; 0.01mm , Oil-proof type  , 107-SWA

Dial Gauges are widely used manufacturing plants.
○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

  • Model 107-SWA
  • Graduation 0.01mm
  • Range 10mm
  • Oil-proof type
  • Flat crystal
  • Contact point ( X-2A )
  • Lug back



Model

Graduation  (mm)

Range (mm)

Reading

Indication error (µm)

Backward error (µm)

Repeatability (µm)

Measuring force less than (N)

Revolution

Whole measuring range

1/10

1/2

One

Two

107-SWA

0.01

10

±0 -50-100

8

±9

±10

±15

±15

5

5

1.4



Dimensions (mm)
Model A B C D E F G H I
107-SWA 65 41.5 18.5 55 15 20 4 6.5 49



Product form

Peacock Standard Dial Gauges; 0.01mm , Oil-proof type  , 107-SWA Dial Gauges are widely used manufacturing plants. ○ The stem,... Read more

SKU: 107-SWA

$104.99 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      Peacock Standard Dial Gauges; 0.01mm , Oil-proof type  , 107-SWA

      Dial Gauges are widely used manufacturing plants.
      ○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
      ○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
      ○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
      ○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

      • Model 107-SWA
      • Graduation 0.01mm
      • Range 10mm
      • Oil-proof type
      • Flat crystal
      • Contact point ( X-2A )
      • Lug back



      Model

      Graduation  (mm)

      Range (mm)

      Reading

      Indication error (µm)

      Backward error (µm)

      Repeatability (µm)

      Measuring force less than (N)

      Revolution

      Whole measuring range

      1/10

      1/2

      One

      Two

      107-SWA

      0.01

      10

      ±0 -50-100

      8

      ±9

      ±10

      ±15

      ±15

      5

      5

      1.4



      Dimensions (mm)
      Model A B C D E F G H I
      107-SWA 65 41.5 18.5 55 15 20 4 6.5 49
