Display
|
Digit display method
|
|
Model
|
NPN
|
PFD-RGN
|
PFD-RMN
|
|
PNP
|
PFD-RGP
|
PFD-RMP
|
|

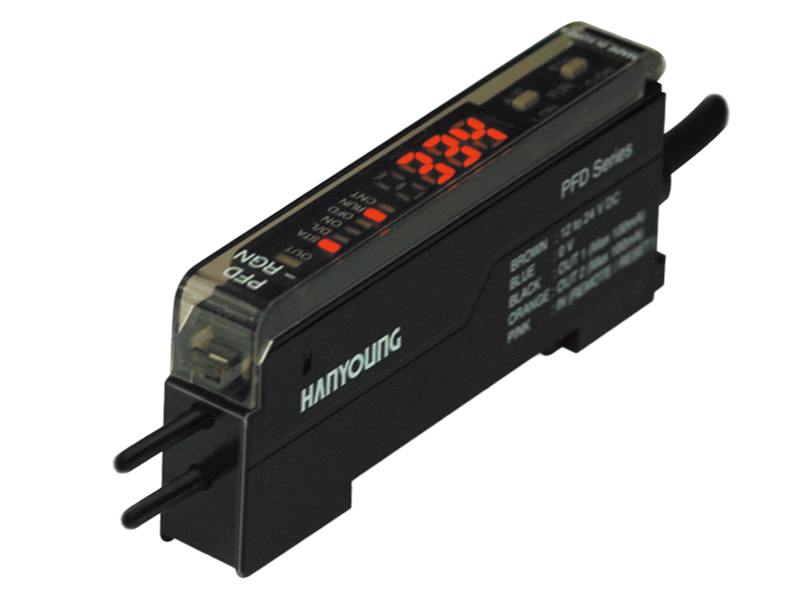

Appearance
|
 |
|
Power supply voltage
|
12 - 24 V d.c. ±10 %
|
|
Current Consumption
|
50 mA max.
|
|
Output
|
Main
|
Control : Open collector output, 100 mA (30 V d.c. Residual voltage 1 V or less)
|
|
Sub
|
Stability : Open collector output, 100 mA (30 V d.c. Residual voltage 1 V or less)
|
|
External Input
|
Teaching by external input signal
|
Teaching / Reset input
|
|
Mtensity of light
|
0~1,000
|
|
Multi
functions
|
Counter
|
-
|
400 cps, Up/Down, 0~9,999
|
|
RPM
|
-
|
12 ~ 9,999 rpm
|
|
Output action
|
Light On / Dark On Output
NORMAL , ON DELAY, OFF DELAY, ONE Shot Time Output
|
|
On/Off Delay
|
0 ~ 9,999 ms
|
|
OneShotTime
|
0 ~ 9,999 ms
|
|
Light source
(wave length)
|
Red LED / 660 nm
|
|
Protective circuit
|
Built in the reversed power supply connection protective circuit and output short protective circuit
|
|
Response time
|
0.7 ms max
|
1 ms max
|
|
The Rate of Change
|
10 % max
|
|
LED
|
7 contacts state indicating LED, 7 segments LED 4 digits
|
|
Sensitivity adjustment
|
Auto teaching / Manual setting by using the set button
|
|
Additional Function
|
Display brightness control function & 180-degree rotating display
Display time setting, Lock function
|
Display brightness control function & 180-degree rotating display
Display time setting, Zero Reset, Initial Reset, Lock function
|
|
Ambient illumination
|
Sunlight : 10,000 lx max, Incandescent lamp : 3,000 lx max
|
|
Ambient temperature
|
In opration : -10 ℃ ~ 55 ℃, In storage : -25 ℃ ~ 70 ℃ (without condensation or freezing)
|
|
Ambient humidity
|
35 ~ 85 % RH
|
|
Vibration resistance
|
10 - 55 ㎐ double amplitude 1.5 mm, for 2 hours each in X · Y · Z directions
|
|
Shock resistance
|
500 m/s² 3 times each in X · Y · Z directions
|
|
Dielectric strength
|
Max 1 minute in 1000 V a.c. (50 - 60 ㎐)
|
|
Insulation resistance
|
Min 20 MΩ in 500 V d.c.
|
|
Connection method
|
▪DIN rail installation structure,
▪Code extended type,
▪Code length : 2 m,
▪No. of lines : 5P,
▪Thickness : Ø4 mm
|
|
Accessory
|
Mounting bracket
|
|
Certification
|
 |
