Description

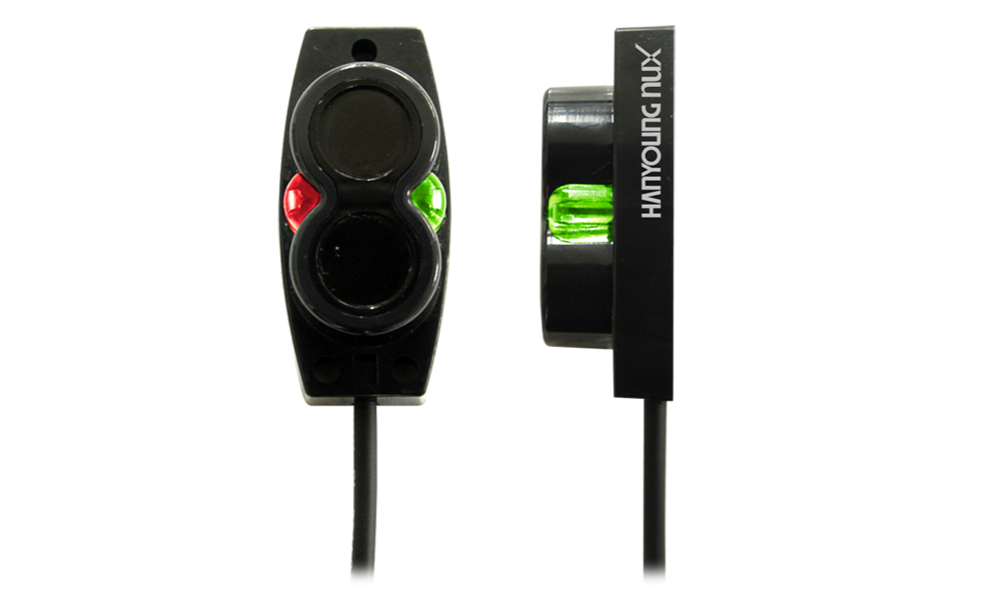

PLD seriesAmplifier built-in type Photoelectric Sensors

- 2M long distance detection by applying double layer structure lens
- Stable light ON indicator (green)
- Built in sensitivity adjustment function

Model	PLD-R2N	PLD-R2P
Appearance
Sensing Type	Diffuse - reflective
Sensing distance	2m
Detecting object	White non-glossy paper (200x200 ㎜)
Power voltage	12 - 24 V d.c. ±10 %
Power consumption	Max. 30 ㎃ d.c.
Control output	• NPN open collector Max. 150 mA d.c. (resistance load) • Residual voltage: 1 V d.c. Below	• PNP open collector Max. 150 mA d.c. (resistance load) • Residual voltage: 1 V d.c. Below
Operation mode	Light On mode
Response time	Max. 1 ms
Hysteresis	Within 20 % of detectable distance
Light source (wavelength)	Infrared LED (850 nm)
LED Indicator	• Control output : Red LED • Safety : green LED
Sensitivity adjustment	'Built-in' sensitivity adjustment V/R (220。degree spin V/R)
Protection circuit	Reverse polarity protection, overcurrent protection
Ambient intensity of illumination	• Sunlight: max. 11000 Lux, • Incandescent lamp: max. 3000 Lux
Ambient temperature & humidity	• When operating: -20 ~ 60 ℃, • when maintaining: -25 ~ 70 ℃, max. 35 ~ 85 % RH (without freezing)
Degree of protection	IP64 (IEC 60529)
Insulating resistance	20 ㏁ or more (based on 500Vd.c. mega)
Dielectric strength	1000 V a.c. for 1 min
Vibration resistance	10-55 ㎐ double amplitude 1.5mm, X,Y,Z each direction for 2 hours
Shock resistance	500 m/s² X·Y·Z each direction for 3 times
Connection method	• Cable pull-out typed • Number of wires: 3P • Outer diameter: Ø3 ㎜ • Length: 2 m
Material	• Case: PET • Lens cap: PC • Lens : PMMA
Cable	3P (26 AWG), length : 2 m
Accessories	Sensitivity adjusting driver, Fixing volt (3-M3 X 17L)
Certification
Weight	60g

Product form

PLD seriesAmplifier built-in type Photoelectric Sensors - 2M long distance detection by applying double layer structure lens- Stable light ON... Read more

SKU: PLD-R2N

$32.20 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

PLD seriesAmplifier built-in type Photoelectric Sensors

- 2M long distance detection by applying double layer structure lens
- Stable light ON indicator (green)
- Built in sensitivity adjustment function

Model	PLD-R2N	PLD-R2P
Appearance
Sensing Type	Diffuse - reflective
Sensing distance	2m
Detecting object	White non-glossy paper (200x200 ㎜)
Power voltage	12 - 24 V d.c. ±10 %
Power consumption	Max. 30 ㎃ d.c.
Control output	• NPN open collector Max. 150 mA d.c. (resistance load) • Residual voltage: 1 V d.c. Below	• PNP open collector Max. 150 mA d.c. (resistance load) • Residual voltage: 1 V d.c. Below
Operation mode	Light On mode
Response time	Max. 1 ms
Hysteresis	Within 20 % of detectable distance
Light source (wavelength)	Infrared LED (850 nm)
LED Indicator	• Control output : Red LED • Safety : green LED
Sensitivity adjustment	'Built-in' sensitivity adjustment V/R (220。degree spin V/R)
Protection circuit	Reverse polarity protection, overcurrent protection
Ambient intensity of illumination	• Sunlight: max. 11000 Lux, • Incandescent lamp: max. 3000 Lux
Ambient temperature & humidity	• When operating: -20 ~ 60 ℃, • when maintaining: -25 ~ 70 ℃, max. 35 ~ 85 % RH (without freezing)
Degree of protection	IP64 (IEC 60529)
Insulating resistance	20 ㏁ or more (based on 500Vd.c. mega)
Dielectric strength	1000 V a.c. for 1 min
Vibration resistance	10-55 ㎐ double amplitude 1.5mm, X,Y,Z each direction for 2 hours
Shock resistance	500 m/s² X·Y·Z each direction for 3 times
Connection method	• Cable pull-out typed • Number of wires: 3P • Outer diameter: Ø3 ㎜ • Length: 2 m
Material	• Case: PET • Lens cap: PC • Lens : PMMA
Cable	3P (26 AWG), length : 2 m
Accessories	Sensitivity adjusting driver, Fixing volt (3-M3 X 17L)
Certification
Weight	60g

Reviews

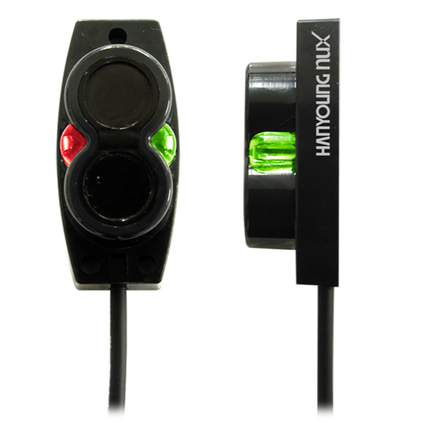

Name: Hanyoung Nux Photoelectric Sensor, Photoelectric Type PLD-R2N
