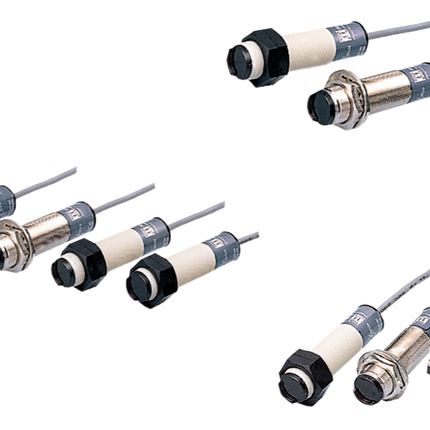

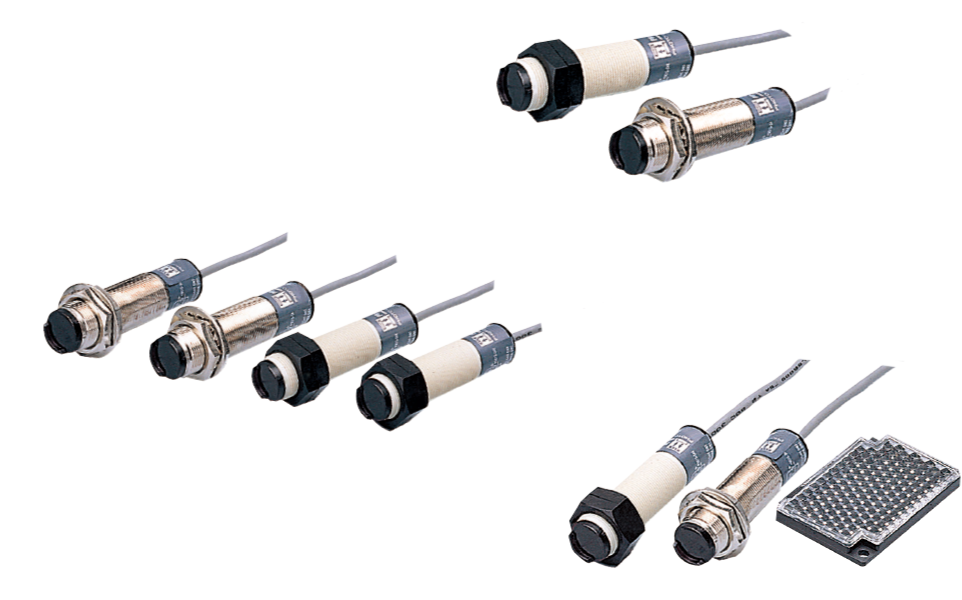

Model
|
Metal
|
NPN
|
PR-T10NC
|
PRM-M2N
|
PRM-R01N
|
PRM-R04N
|
|
PNP
|
PR-T10PC
|
PRM-M2P
|
PRM-R01P
|
PRM-R04P
|
|
Plastic
|
NPN
|
PR-T10NP
|
PRP-M2N
|
PRP-R01N
|
PRP-R04N
|
|
PNP
|
PR-T10PP
|
PRP-M2P
|
PRP-R01P
|
PRP-R04P
|
|
Sensing mode
|
Through-beam
|
Retroreflective (mirror)
|
Diff use-reflective
|
|
Sensing distance
|
10 m
|
0.1 ~ 2mm (Note 1)
|
0.1m
|
0.4m
|
|
Hysteresis distance
|
-
|
Less than 20% of the sensing range
|
|
Detecting object
|
Ø10 mm more (Opaque)
|
Ø60 mm more (Opaque)
|
White non-glossy paper (100 x 100 mm)
|
|
Light source (Wavelength)
|
Infrared ligtening
LED (890 ㎚)
|
IR (860 nm)
|
|
Current consumption
|
Transmitter : 15 ㎃
Receiver : 20 ㎃
|
Max. 30 mA
|
|
Power voltage
|
12 - 24 V d.c. ± 10 % (Ripple max. 10 %)
|
|
Control output
|
▪NPN or PNP open collector output
▪Load current - max. 100 mA (26.4 V d.c. standard)
▪Residual voltage - NPN : max. 1 V, PNP : max. 1 V
|
|
Operation mode
|
Light ON / Dark ON(By white cable)
※ but, through-beam has only in the receiver
|
|
Protection
circuit
|
Common
|
▪Power reverse connection protection
▪Output reverse connection protection
▪Output short-circuit over-current protection
▪Output short-circuit alarm (Note2)
|
|
Individual
|
-
|
Mutual interference prevention function
|
|
Response time
|
1 ms or less
|
|
Insulation Resistance
|
More than 20 MΩ (500 V d.c. mega)
|
|
Noise immunity
|
Square wave noise by noise simulator (pulse width 1㎲) ± 240 V
|
|
Dielectric strength
|
1,000 V a.c. (50/60 Hz for 1 minute)
|
|
Vibration bresistance
|
10 - 55 Hz, Double amplitude : 1.5 mm, X·Y·Z 2 in each direction for 2 hours
|
|
Shock resistance
|
500 m/s², X·Y·Z each direction 3 times
|
|
Ambient illumination
|
Sunlight : max. 11,000 lx / Incandescent : max 3,000 lx (Light receiving surface illuminance)
|
|
Ambient temperature
|
During operation : -25 ~ +55 ℃, During storage : -40 ~ +70 ℃ (Without condensation)
|
|
Ambient humidity
|
35 ~ 85 % RH (Without condensation)
|
|
Degree of protection
|
IP66 (IEC standard)
|
|
Certification
|
 |
|
Material
|
Case
|
▪Metal : Brass Chrome Plating
▪Plastic : Plastic
|
|
Display
|
PC
|
|
Lens
|
PC
|
|
Accessory
|
Common
|
▪Metal : 2 fixing nuts, 1 washer, V/R adjustment screwdriver
▪Plastic : 2 fixing nuts, V/R adjustment screwdriver
|
|
Individual
|
-
|
Mirror (HY-M5)
|
-
|
|
Weight
|
▪Metal : Approx. 320g
▪Plastic : Approx. 280g
|
▪Metal : Approx. 160g
▪Plastic : Approx. 140g
|
