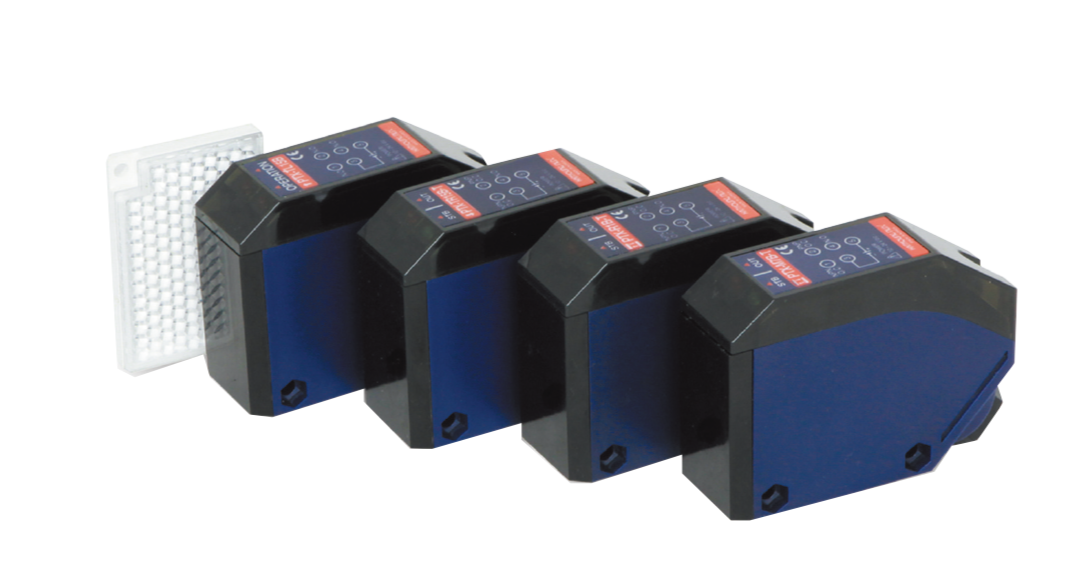

Model
|
Normal type
|
PTX-T15B
|
PTX-T30B
|
PTX-M7B
|
PTX-R1B
|
|
Timerbuilt-in type
|
PTX-T15B-T
|
PTX-T30B-T
|
PTX-M7B-T
|
PTX-R1B-T
|
|
Sensing type
|
Through beam type
|
Retro reflection type
|
Diffuse reflection type
|
|
Sensing distance
|
15m
|
30m
|
7m (Note1)
|
1m
|
|
Sensing object
|
Opaque object above Ø20 mm
|
Opaque object above Ø60 ㎜
|
White paper with no gloss
200 mm × 200 m
|
|
Power supply voltage
|
12 - 24 V d.c. ±10 %
|
|
Power consumption
|
Emitter : 35 mA max.
Transmitter : 20 mA max.
|
45 mA max.
|
|
Control output
|
NPN/PNP open collector yield output at the same time, Load current : 150 mA d.c.
(Resistive load) NPN Residual voltage : Max 1 V d.c. / PNP Residual voltage : Max 2 V d.c.
|
|
Operation mode
|
Light ON/ Dark ON Selection by selector switch
|
|
Response Time
|
1 ㎳ max.
|
|
Hysteresis
|
－
|
Less than 20 % of sensing distance
|
|
Indicator
|
Output display : Red LED, Stable display : Green LED
(However, the red LED of the through-beam type transmitter is the power indicator.)
|
|
Sensitivity adjustment
|
－
|
Sensitivity adjusting volume built-in
|
|
Protection circuit
|
Protective circuits for power reverse connection and output break
|
|
Timer function
(Only corresponds to timer built-in type)
|
Select OFF Delay, ON Delay or One Shot Delay by using the ON/OFF switch.
Delay Time : 0.1 ~ 5 sec adjust by the volume.
|
|
Light source (wavelength)
|
IR (850 nm)
|
|
Ambient temperature
|
Operation : -20 ~ 60 ℃,
Storage : -25 ~ 70 ℃ (with no icing nor dew condensation)
|
|
Ambient humidity
|
35 ~ 85 % RH (with no icing nor dew condensation)
|
|
Degree of protection
|
IP 66 (IEC standard)
|
|
Insulation resistance
|
20 ㏁ or min (standard on 500 V d.c. mega)
|
|
Dielectric strength
|
1500 V a.c. (1 minute)
|
|
Vibration resistance
|
10 - 55 ㎐, Double amplitude : 1.5 ㎜, X . Y . Z 2 hours in each directions
|
|
Shock resistance
|
500m/s² (approx 50 G), 3 times to each of X, Y, Z directions
|
|
Connection method
|
Terminal
|
|
Material
|
Case : ABS, Lens : PC
|
|
Weight
|
Transmission type : about 280 g,
mirror reflection type : about 150 g,
diffuse reflection type : about 140 g
|
|
Accessories
|
Individual
|
-
|
Reflector (HY-M5)
|
-
|
|
Common
|
Driver, Bracket, Bolt, Nut, Water-proof rubber, Wire holder
|
