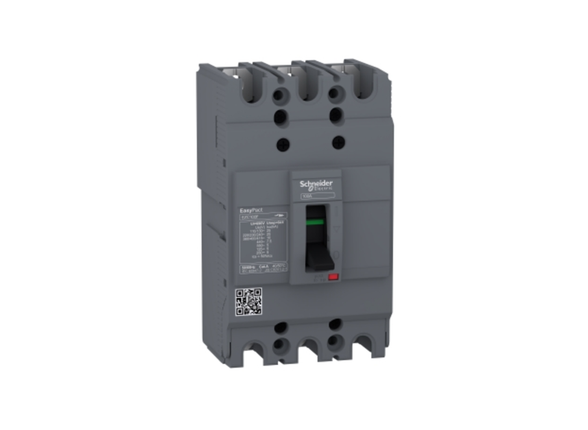

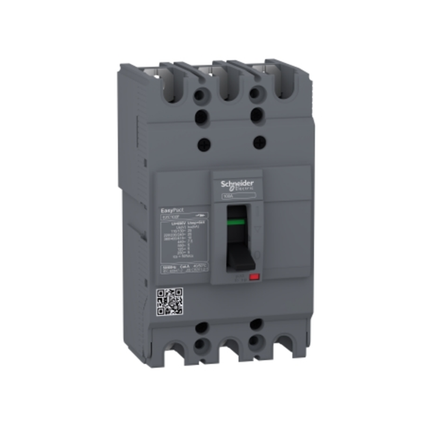

Schneider Electric circuit breaker Easypact EZC100F - TMD - 60 A - 3 poles 3d

Description

Description

EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 60A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100F is compliant with international standards (IEC 60947, UL 508) and marine certifications.

Specifications

Main
range of product EasyPact
Product or component type Circuit breaker
Device short name Easypact EZC100F
Circuit breaker name Easypact EZC100F
Device application Distribution
Poles description 3P
Protected poles description 3t
Network type DC
AC
Network frequency 50/60 Hz
[In] rated current 60 A at 40 °C
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2
Breaking capacity code F
Breaking capacity 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 125 V DC conforming to IEC 60947-2
2.5 kA at 250 V DC conforming to IEC 60947-2
2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation Yes conforming to IEC 60947-2
utilisation category Category A
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit rating 60 A at 50 °C
Protection type Overload protection
Short-circuit protection
Pollution degree 3 conforming to IEC 60664-1
3 conforming to IEC 947-1
Complementary
Control type Toggle
Mounting mode Fixed
mounting support Backplate
Upside connection Front
downside connection Front
Mechanical durability 8500 cycles
Electrical durability Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch 25 mm
local signalling Positive contact indication
Neutral protection setting Without protection
earth-leakage protection Without
height 130 mm
Width 75 mm
Depth 60 mm
Environment
Standards EN/IEC 60947-2
JIS C8201-2-2
EN/IEC 60947-1
GB/T 14048.2
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -35…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 8.5 cm
Package 1 Length 14.0 cm
Package 1 Weight 786.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 12
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.792 kg
Unit Type of Package 3 P12
Number of Units in Package 3 384
Package 3 Height 75 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 326 kg
Contractual warranty
Warranty 18 months

Product form

Description EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It... Read more

SKU: EZC100F3060

$35.31 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 24, 2024 17:00:00 +0900

    Description

    Description

    EasyPact EZC100F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 60A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100F is compliant with international standards (IEC 60947, UL 508) and marine certifications.

    Specifications

    Main
    range of product EasyPact
    Product or component type Circuit breaker
    Device short name Easypact EZC100F
    Circuit breaker name Easypact EZC100F
    Device application Distribution
    Poles description 3P
    Protected poles description 3t
    Network type DC
    AC
    Network frequency 50/60 Hz
    [In] rated current 60 A at 40 °C
    [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
    [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
    [Ue] rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2
    250 V DC conforming to IEC 60947-2
    Breaking capacity code F
    Breaking capacity 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
    25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
    5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
    5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
    5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
    10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
    10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
    7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    [Ics] rated service breaking capacity 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
    12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
    2.5 kA at 125 V DC conforming to IEC 60947-2
    2.5 kA at 250 V DC conforming to IEC 60947-2
    2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
    5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
    5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
    3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
    Suitability for isolation Yes conforming to IEC 60947-2
    utilisation category Category A
    Trip unit name TM-D
    Trip unit technology Thermal-magnetic
    Trip unit rating 60 A at 50 °C
    Protection type Overload protection
    Short-circuit protection
    Pollution degree 3 conforming to IEC 60664-1
    3 conforming to IEC 947-1
    Complementary
    Control type Toggle
    Mounting mode Fixed
    mounting support Backplate
    Upside connection Front
    downside connection Front
    Mechanical durability 8500 cycles
    Electrical durability Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
    Connection pitch 25 mm
    local signalling Positive contact indication
    Neutral protection setting Without protection
    earth-leakage protection Without
    height 130 mm
    Width 75 mm
    Depth 60 mm
    Environment
    Standards EN/IEC 60947-2
    JIS C8201-2-2
    EN/IEC 60947-1
    GB/T 14048.2
    IP degree of protection IP20 conforming to IEC 60529
    IK degree of protection IK07 conforming to IEC 62262
    Ambient air temperature for operation -25…70 °C
    Ambient air temperature for storage -35…85 °C
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 9.5 cm
    Package 1 Width 8.5 cm
    Package 1 Length 14.0 cm
    Package 1 Weight 786.0 g
    Unit Type of Package 2 S02
    Number of Units in Package 2 12
    Package 2 Height 15.0 cm
    Package 2 Width 30.0 cm
    Package 2 Length 40.0 cm
    Package 2 Weight 9.792 kg
    Unit Type of Package 3 P12
    Number of Units in Package 3 384
    Package 3 Height 75 cm
    Package 3 Width 120 cm
    Package 3 Length 80 cm
    Package 3 Weight 326 kg
    Contractual warranty
    Warranty 18 months

    Reviews

    Schneider Electric circuit breaker Easypact EZC100F - TMD - 60 A - 3 poles 3d

    Schneider Electric circuit breaker Easypact EZC100F - TMD - 60 A - 3 poles 3d

    0 out of 5 stars

    This product has no reviews yet

    Write a review
