Description

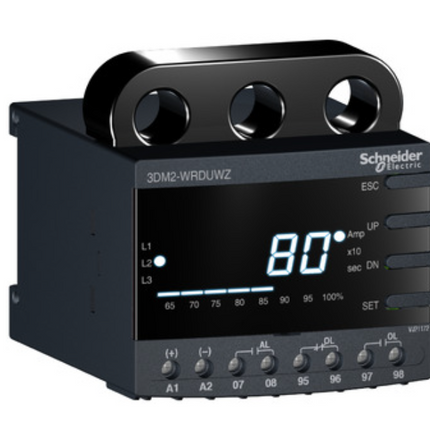

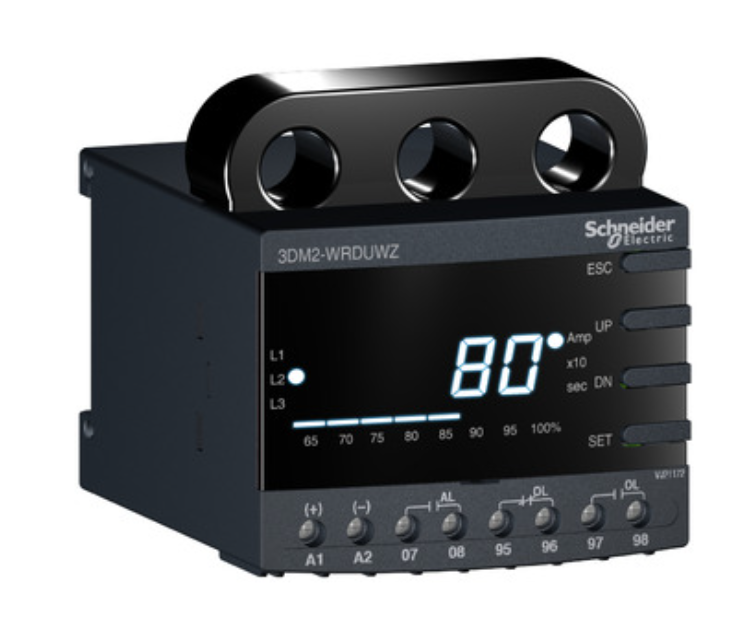

The Schneider Electric EOCR-3DM2-WRDBWZ is a digital electronic motor protection relay with a 7-segment LED display and bar graph. It protects three-phase AC motors against overload, underload, locked rotor, phase loss, phase unbalance and phase reversal, with selectable definite, inverse and thermal trip curves. Motor leads pass through the built-in current windows, and the relay mounts on a 35 mm DIN rail or directly on a panel.
Protection Functions
- Overload (In > OC setting)
- Underload (In < UC setting)
- Locked rotor at start (2–8 × OC setting) and while running (1.5–5 × OC setting)
- Phase loss, phase reversal, phase unbalance (10–50%)
Specifications
| Model |
EOCR-3DM2-WRDBWZ |
| Range |
EOCR |
| Control supply voltage (Us) |
24 V AC/DC |
| Network |
3-phase AC, 50/60 Hz |
| Current adjustment range |
0.5–80 A (definite); 0.5–32 A (inverse and thermal) |
| Current connection |
Window (through-hole) type |
| Output contacts |
1 NO + 1 NC (OL); 1 NO (AL/UL/TO) |
| Contact rating |
3 A at 250 V AC |
| Rated operational voltage (Ue) |
690 V AC (IEC 60947-4-1 / CSA); 600 V AC (UL) |
| Rated impulse withstand (Uimp) |
6 kV |
| Reset |
Manual; automatic 0.5–1200 s; electrical by supply interruption |
| Time settings |
D-Time 0–200 s; O-Time 0.2–30 s (definite) / class 1–30 (inverse, thermal); U-Time 0.5–30 s |
| Display |
7-segment LED + bar graph |
| Power consumption |
3 W |
| Mounting |
35 mm DIN rail or panel |
| Control terminals |
M3, 1–2.5 mm², 0.8–1.2 N·m |
| Dimensions (H × W × D) |
74.5 × 70 × 83.8 mm |
| Net weight |
315 g |
| Degree of protection |
IP20 |
| Operating temperature |
-20 to 60 °C |
| Standards / Certification |
IEC 60947-4-1 / UL |
Ordering Note
This model requires a 24 V AC/DC control supply. For 100–240 V AC/DC control supply, the corresponding model is EOCR-3DM2-WRDUWZ.
Lead time: ships in 5–6 weeks. For volume pricing, contact us.
