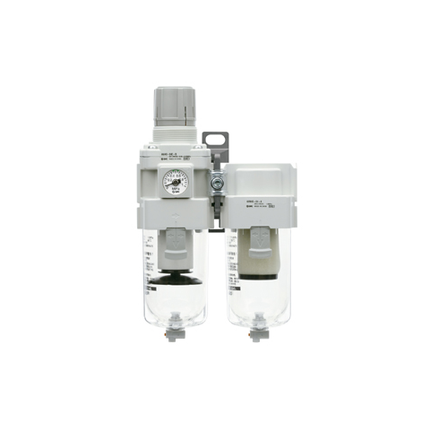

SMC AC20D-B to AC40D-B, Filter Regulator and Mist Separator, AC30D-03DE-R-B

Description

OVERVIEW



SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with the existing modular AC line. The AC-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AC-A. The element and bowl on the AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AFseries, depending on the body size. Bowls on size 30 and up are now covered with a transparent bowl guard, completely protecting them from the enviromnent, and making the interior contents visible from 360 degrees. The base color of the new AC-B is uban white, maintaining a clean, modern look.

  • Filter, regulator, mist separator
  • Clean looking, urban white, modular design
  • Element and bowl are in one-piece for easy replacement
  • Embedded gauge and pressure switch options available
  • Transparent bowl guard provides 350 degree visibility






?€ Symbol Description 1
Body size
20 30 40
2 Pipe thread type Nil Rc O O O
N NPT O O O
F G O O O
3 Port size 1 1/8 O - -
2 1/4 O O O
3 3/8 - O O
4 1/2 - - O
6 3/4 - - O
4 Option a Float type auto drain Nil Without auto drain O O O
C N.C. (Normally closed) Drain port is closed when pressure is not applied. O O O
D N.O. (Normally open) Drain port is open when pressure is not applied. - O O
b Pressure gauge *6 Nil Without pressure gauge O O O
E Square embedded type pressure gauge (with limit indicator) O O O
G Round type pressure gauge (with limit indicator) O O O
M Round type pressure gauge (with color zone) O O O
Digital pressure switch E1 Output: NPN output, Electrical entry: Wiring bottom entry O O O
E2 Output: NPN output, Electrical entry: Wiring top entry O O O
E3 Output: PNP output, Electrical entry: Wiring bottom entry O O O
E4 Output: PNP output, Electrical entry: Wiring top entry O O O
5 Attachment c Pressure switch Nil Without attachment O O O
S*7 Mounting position: AW+S+AFM O O O
d Pressure relief 3 port valve Nil Without attachment O O O
V Mounting position: AW+AFM+V O O O
V1*8 Mounting position: V+AWlK+AFM O O O
6 Semi-
standard		 e Set pressure *9 Nil 0.05 to 0.85 MPa setting O O O
1 0.02 to 0.2 MPa setting O O O
f Bowl *10 Nil Polycarbonate bowl O O O
2 Metal bowl O O O
6 Nylon bowl O O O
8 Metal bowl with level gauge - O O
C With bowl guard O - -
6C With bowl guard (Nylon bowl) O - -
g Filter regulator Nil With drain cock O O O
J*14 Drain guide 1/8 O - -
Drain guide 1/4 - O O
W*15 Drain cock with barb fitting: For ø6 x ø4 nylon tube - O O
h Exhaust mechanism Nil Relieving type O O O
N Non-relieving type O O O
i Flow direction Nil Flow direction: Left to right O O O
R Flow direction: Right to left O O O




Product form

OVERVIEW SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with... Read more

SKU: AC30D-03DE-R-B

$111.95 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    OVERVIEW



    SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with the existing modular AC line. The AC-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AC-A. The element and bowl on the AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AFseries, depending on the body size. Bowls on size 30 and up are now covered with a transparent bowl guard, completely protecting them from the enviromnent, and making the interior contents visible from 360 degrees. The base color of the new AC-B is uban white, maintaining a clean, modern look.

    • Filter, regulator, mist separator
    • Clean looking, urban white, modular design
    • Element and bowl are in one-piece for easy replacement
    • Embedded gauge and pressure switch options available
    • Transparent bowl guard provides 350 degree visibility






    ?€ Symbol Description 1
    Body size
    20 30 40
    2 Pipe thread type Nil Rc O O O
    N NPT O O O
    F G O O O
    3 Port size 1 1/8 O - -
    2 1/4 O O O
    3 3/8 - O O
    4 1/2 - - O
    6 3/4 - - O
    4 Option a Float type auto drain Nil Without auto drain O O O
    C N.C. (Normally closed) Drain port is closed when pressure is not applied. O O O
    D N.O. (Normally open) Drain port is open when pressure is not applied. - O O
    b Pressure gauge *6 Nil Without pressure gauge O O O
    E Square embedded type pressure gauge (with limit indicator) O O O
    G Round type pressure gauge (with limit indicator) O O O
    M Round type pressure gauge (with color zone) O O O
    Digital pressure switch E1 Output: NPN output, Electrical entry: Wiring bottom entry O O O
    E2 Output: NPN output, Electrical entry: Wiring top entry O O O
    E3 Output: PNP output, Electrical entry: Wiring bottom entry O O O
    E4 Output: PNP output, Electrical entry: Wiring top entry O O O
    5 Attachment c Pressure switch Nil Without attachment O O O
    S*7 Mounting position: AW+S+AFM O O O
    d Pressure relief 3 port valve Nil Without attachment O O O
    V Mounting position: AW+AFM+V O O O
    V1*8 Mounting position: V+AWlK+AFM O O O
    6 Semi-
    standard    		 e Set pressure *9 Nil 0.05 to 0.85 MPa setting O O O
    1 0.02 to 0.2 MPa setting O O O
    f Bowl *10 Nil Polycarbonate bowl O O O
    2 Metal bowl O O O
    6 Nylon bowl O O O
    8 Metal bowl with level gauge - O O
    C With bowl guard O - -
    6C With bowl guard (Nylon bowl) O - -
    g Filter regulator Nil With drain cock O O O
    J*14 Drain guide 1/8 O - -
    Drain guide 1/4 - O O
    W*15 Drain cock with barb fitting: For ø6 x ø4 nylon tube - O O
    h Exhaust mechanism Nil Relieving type O O O
    N Non-relieving type O O O
    i Flow direction Nil Flow direction: Left to right O O O
    R Flow direction: Right to left O O O
