OVERVIEW SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with... Read more

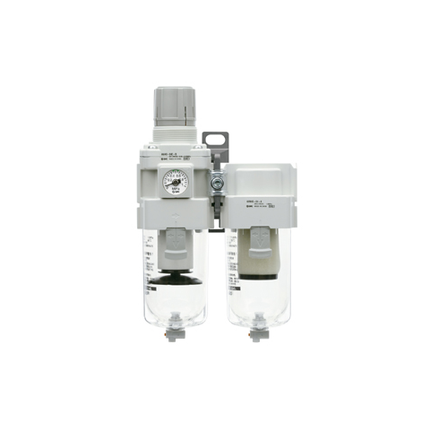

SKU: AC40D-03DG-B

$179.24 Excl. VAT

Reviews

0 out of 5 stars

This product has no reviews yet

?€				Symbol	Description	1
						Body size
						20	30	40
2			Pipe thread type	Nil	Rc	O	O	O
				N	NPT	O	O	O
				F	G	O	O	O
3			Port size	1	1/8	O	-	-
				2	1/4	O	O	O
				3	3/8	-	O	O
				4	1/2	-	-	O
				6	3/4	-	-	O
4	Option	a	Float type auto drain	Nil	Without auto drain	O	O	O
				C	N.C. (Normally closed) Drain port is closed when pressure is not applied.	O	O	O
				D	N.O. (Normally open) Drain port is open when pressure is not applied.	-	O	O
		b	Pressure gauge *6	Nil	Without pressure gauge	O	O	O
				E	Square embedded type pressure gauge (with limit indicator)	O	O	O
				G	Round type pressure gauge (with limit indicator)	O	O	O
				M	Round type pressure gauge (with color zone)	O	O	O
			Digital pressure switch	E1	Output: NPN output, Electrical entry: Wiring bottom entry	O	O	O
				E2	Output: NPN output, Electrical entry: Wiring top entry	O	O	O
				E3	Output: PNP output, Electrical entry: Wiring bottom entry	O	O	O
				E4	Output: PNP output, Electrical entry: Wiring top entry	O	O	O
5	Attachment	c	Pressure switch	Nil	Without attachment	O	O	O
		c	Pressure switch	S*7	Mounting position: AW+S+AFM	O	O	O
		d	Pressure relief 3 port valve	Nil	Without attachment	O	O	O
				V	Mounting position: AW+AFM+V	O	O	O
				V1*8	Mounting position: V+AWlK+AFM	O	O	O
6	Semi- standard	e	Set pressure *9	Nil	0.05 to 0.85 MPa setting	O	O	O
		e	Set pressure *9	1	0.02 to 0.2 MPa setting	O	O	O
		f	Bowl *10	Nil	Polycarbonate bowl	O	O	O
				2	Metal bowl	O	O	O
				6	Nylon bowl	O	O	O
				8	Metal bowl with level gauge	-	O	O
				C	With bowl guard	O	-	-
				6C	With bowl guard (Nylon bowl)	O	-	-
		g	Filter regulator	Nil	With drain cock	O	O	O
				J*14	Drain guide 1/8	O	-	-
				J*14	Drain guide 1/4	-	O	O
				W*15	Drain cock with barb fitting: For ø6 x ø4 nylon tube	-	O	O
		h	Exhaust mechanism	Nil	Relieving type	O	O	O
