Description

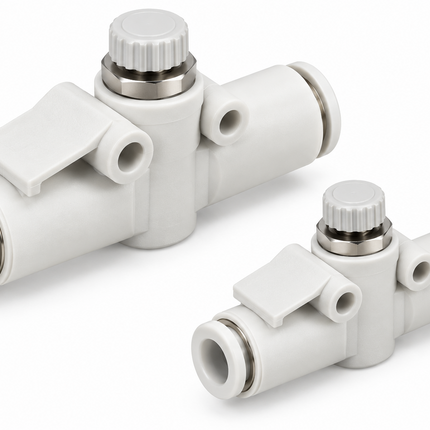

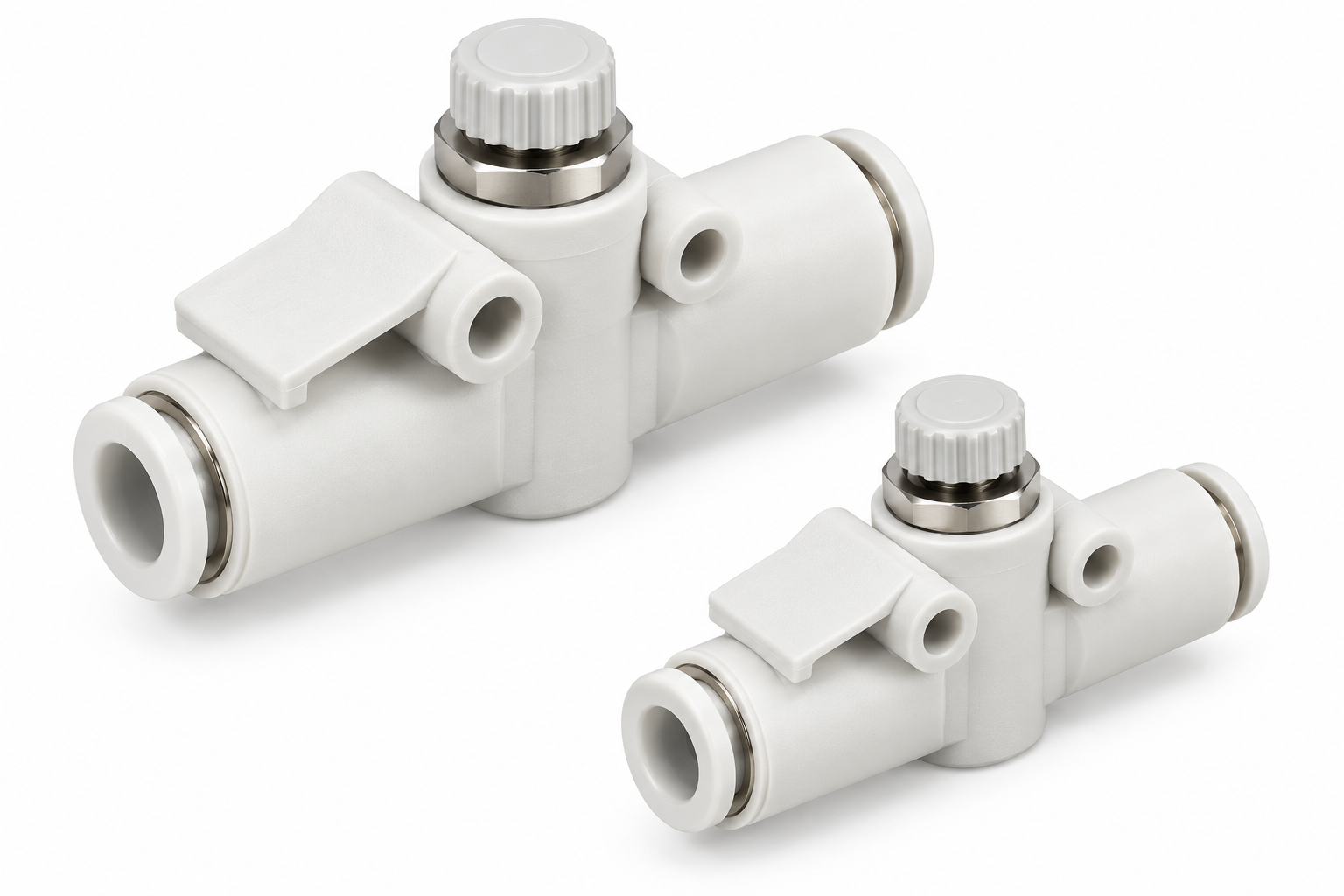

SMC AS1002F-04 — AS series speed controller, in-line type with one-touch fittings at both ends. Meter-out flow control that drops into an existing tube run, and can be mounted where the operator can reach it rather than at the cylinder port.
Specification — AS1002F-04
| Type |
Speed controller, in-line |
| Tube O.D. |
ø4 mm, both ends |
| Control |
Meter-out |
| Mounting |
Direct, L-bracket, DIN rail or holder |
| Product weight |
5.5 g |
Features
- Four mounting methods — direct, L-bracket, DIN rail and holder — so a bank of controllers can be grouped on one plate
- Index plate fitted, so each controller can be numbered to the cylinder it serves
- Weight reduced by 30% against the previous model (comparison based on AS2002F-04)
Why mount them together
When speed controllers sit at the cylinder ports, trimming a machine means reaching into the frame for each one. Grouping them on a DIN rail or bracket at the panel puts every adjustment in one place, and the index plate records which cylinder each one feeds — useful when the machine is handed over to a maintenance team.
Ordering
Order by the full code AS1002F-04. The digits give the body size and tube O.D., and the suffix gives the port type, so one character changes the part. Need another tube size, the ø6 and ø8 bodies, or the bracket and holder accessories? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
