Description

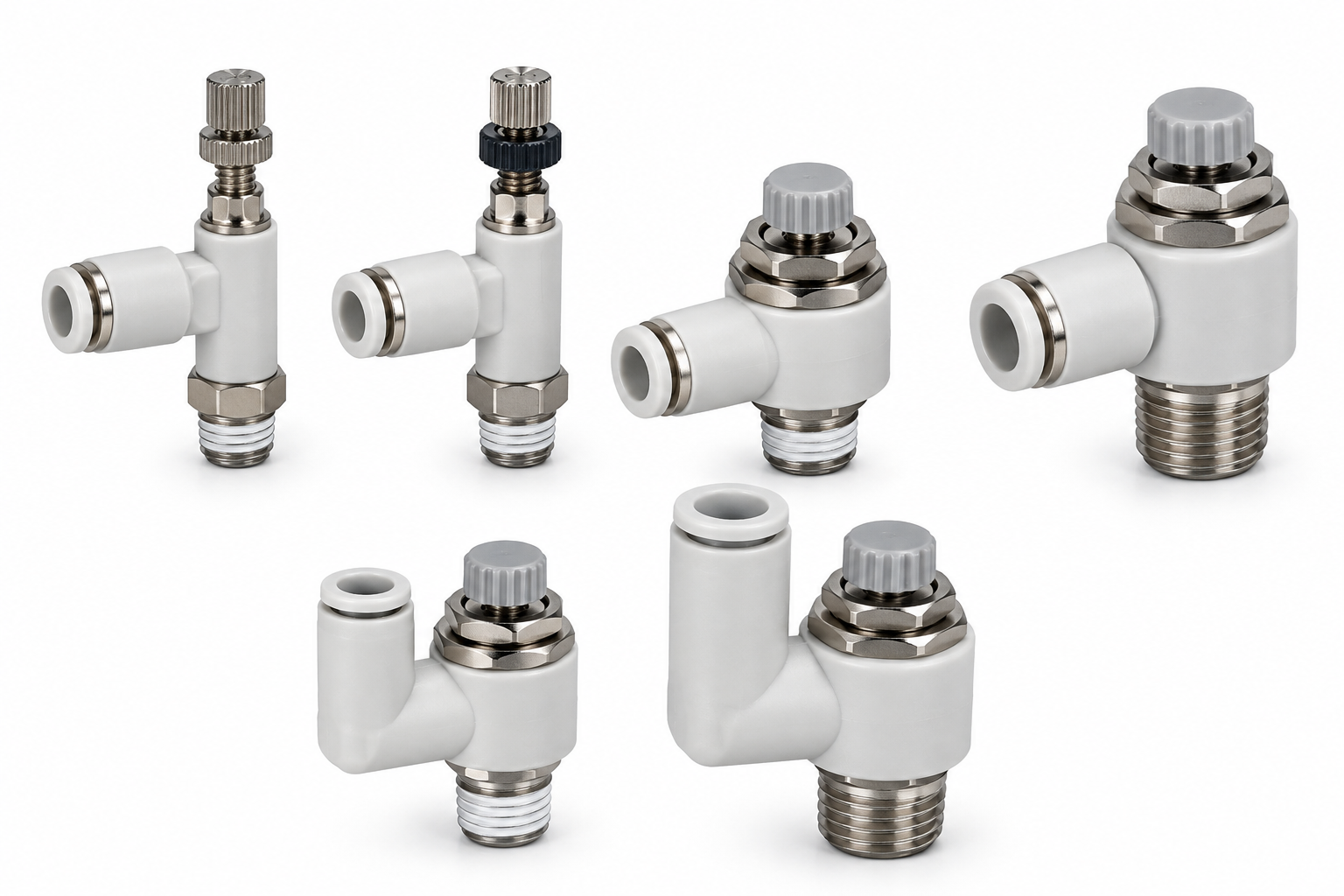

SMC AS1201F-M3-04 — AS series speed controller, elbow type with a one-touch fitting. Meter-out flow control with a scale window, so the setting is read as a number instead of counting turns. The M3 thread suits the small ports found on miniature cylinders and compact valves.
Specification — AS1201F-M3-04
| Type |
Speed controller, elbow |
| Thread |
M3 x 0.5 |
| Tube O.D. |
ø4 mm |
| Control |
Meter-out |
| Adjustment |
Push-lock handle with flow scale window |
| Surface treatment |
Electroless nickel plated (standard) |
| Product weight |
4 g |
Features
- Scale window shows the flow setting as a value, which cuts setup time and removes the guesswork that causes setting mistakes
- Enlarged push-lock handle — set it, push to lock, and the setting holds against vibration
- Improved flow rate reproducibility, so the same reading gives the same cylinder speed
- Easier tube insertion and removal
- Electroless nickel plating is standard, not an option
Why the scale matters
On a machine with twenty cylinders, a controller without a scale has to be re-tuned by eye every time a unit is replaced. With a numbered window the setting is recorded once and restored in seconds, and the same value can be applied across identical stations.
Ordering
Order by the full code AS1201F-M3-04. The thread is part of the code — M3 and M5 bodies are not interchangeable — and the last digits give the tube O.D. Need another thread or tube size, or the in-line and universal styles in the same range? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
